en Portable Laser Marking Machine For Sale - Wattsan HT

Handheld and portable laser marker Wattsan FL HT with encoder and 20/30//50W laser source

Portable Fiber Laser Marking Machine (20/30/50W) Wattsan HT FL

HT

Laser power
Laser source
Work area
Marker type
Lens working area
Machine size

20/30/50 W
RayMax/Maxphotonics
100 x 100 mm
Handheld
50x50, 100x100, 140x140 mm
20/30 W: Box - 255 x 135 x 200 mm

All characteristics

Package list

Price on demand

Get a price

Portable laser marker Wattsan FL HT with encoder

The Wattsan FL HT is a fiber laser designed for manual use, and for that it has a lightweight portable unit and a comfortable handheld arm. Such a solution provides maximum comfort when working both horizontally and vertically. Also, the machine is convenient for marking and engraving large-sized products that are difficult to move.
The FL HT laser marker can mark steel, stainless steel, copper, aluminum, titanium, silver, gold, brass, ABS plastic, rubber, PVC, stone, black HDPE pipes, ceramics, etc.

Lightweight (only 7.2kg), compact in size and with a handy handle on the block, the marker provides mobility and convenience in busy workshop environments and allows you to take it with you when working away from the production site.

Allows for quick focusing to mark products at the desired height.

Make a request

The best components to provide speed and precision

Sino-Galvo scanners

OPEX lenses, F-Theta system

It's responsible for directing the laser beam on the material’s surface. At Wattsan, we use Sino-Galvo scanners. They have high marking and positioning speed.

The lens is focusing the beam on the material surface. The main advantage of F-Theta lenses is the ability to maintain the same focusing point along the whole working area. Focal length and working area sizes are strictly related.

Sino-Galvo scanners for laser marking machines

F-theta lens OPEX for laser marking machines

Light and Mighty

Portable marking

Help-me-to-focus with encoder

The Wattsan HT weighs only 6 kg, while the marking head has a weight of 1.25 kg. This light handheld laser marker is also small, being 255x135x200 mm in size. Its ergonomic handle allows for comfortable long-term use. In addition, the basic configuration includes a carrying case for easy transport and storage.

The Wattsan HT portable laser marker features a support module with fixed focus, enhancing precision and ease of use. Additionally, it is equipped with an encoder that enables accurate marking on long objects such as tubes and elongated materials. This combination allows for seamless, high-quality marking even on complex or extended surfaces, making the Wattsan HT a versatile solution for various industrial applications.

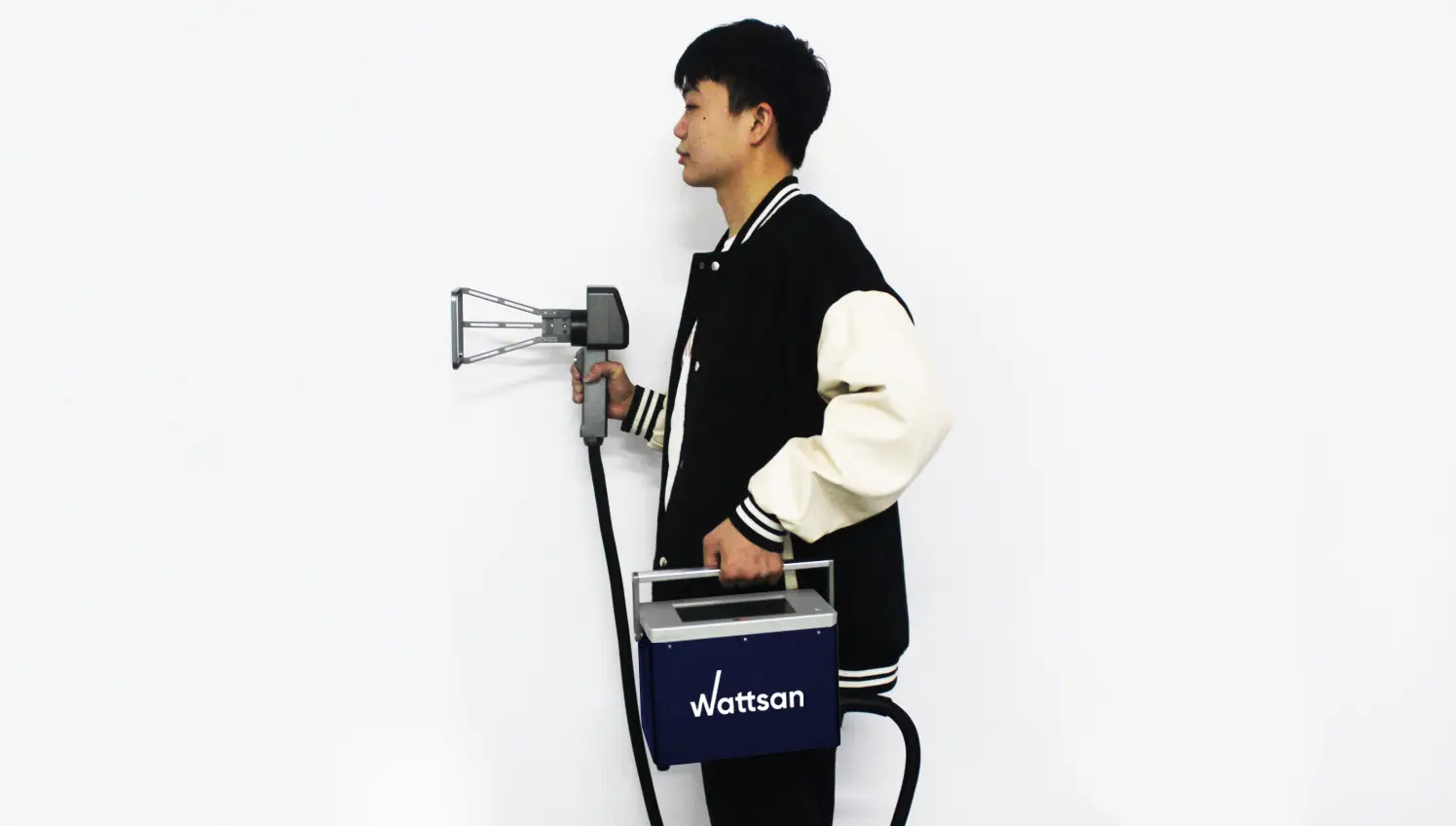

Handheld and portable laser marker Wattsan FL HT

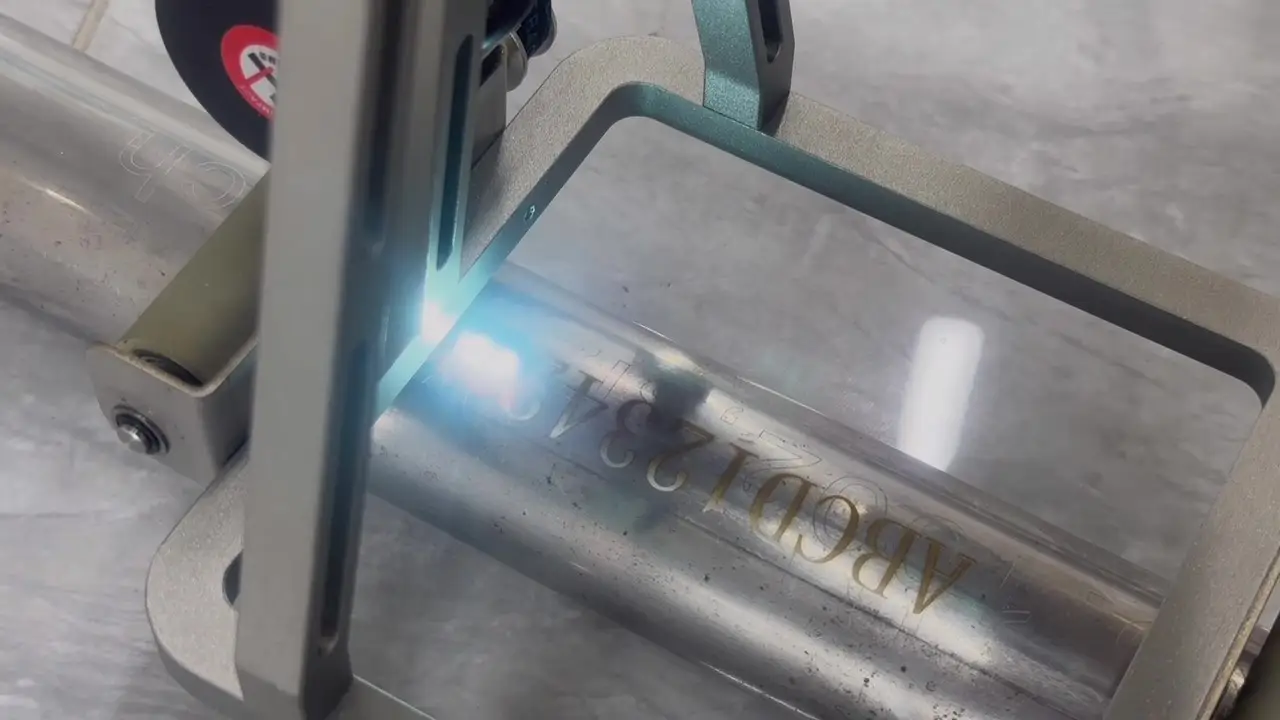

Laser marker Wattsan FL HT process marking with encoder

See Our Laser Markers in Action: Marking and Engraving Across Various Materials

All about the machine in 60 seconds

Portable laser marker Wattsan FL HT with an example of work

The Wattsan HT has a 24V lithium battery that allows 8 hours of autonomous operation without any wires. And if needed, the laser marker can be charged directly during use thanks to its power management feature.

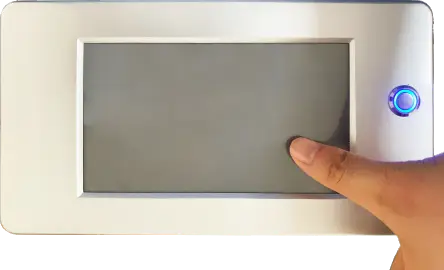

Portable laser marker Wattsan FL HT touchscreen reactivates

The marker has functions of automatic start-stop, automatic shutdown after 60 seconds of standby, and saving power and reducing consumption.

Applications for Wattsan laser markers

Engraving on knives

Laser markers are actively used for decorative marking, which allows you to get a unique design on a product that is not available for other devices.

Engraving on plastics, leather

Little is known that fiber optic markers are great for engraving plastics and leather. The thickness of the laser beam allows you to get highly detailed engraving.

Deep engraving

A 50 W power and a lens with a small working area are suitable for engraving material up to 10 mm deep, for example, to make stamps or clichés.

Marking on steep objects

Markers of the HT series allow you to engrave on vertical or negative surfaces, which make them indispensable for production.

Series comparison

SERIES/
Parameters

Marker type

Laser source

Laser power

CO2 LT

Learn more

Table type

CO2

40 W

FL ST

Learn more

Stand

JPT (LP/M7), IPG, RAYCUS, JPT SEAL, DAVI

20-100 W

FL TT

Learn more

Table type

JPT (LP/M7), IPG, RAYCUS

20-100 W

FL BOX

Learn more

Table type

JPT (LP/M7), IPG, RAYCUS

20-100 W

FL HH

Learn more

Handheld

JPT (LP/M7), IPG, RAYCUS

20-100 W

UV TT

Learn more

Table type

JPT SEAL

5-20 W

FL Compact

Learn more

Table type

JPT (LP/M7), IPG, RAYCUS, JPT SEAL

5-60 W

FL GT

Learn more

Stand

JPT (LP/M7), IPG, RAYCUS, JPT SEAL, DAVI

5-300 W

FM

Learn more

Stand

JPT (LP/M7), IPG, RAYCUS, JPT SEAL, DAVI

5-100 W

3D

Learn more

Table type

JPT (LP/M7), IPG, RAYCUS, JPT SEAL, DAVI

5-100 W

FL HT

Learn more

Handheld

RayMax/MaxPhotonics

20/30/50 W



Learn more	Learn more
Marker type

Laser source

Laser power

We ensure the smooth running of Wattsan machines

Startup & Training

Service & Support

Wattsan service engineers help clients and all partners around the world via online or offline training. You can get info on maintenance, basic machine operations, tips for processing various materials, etc. We launch and train more than 100 clients monthly.

Our service team operates across the world, and Wattsan machines are presented even in Antarctica. We offer an offline and online support system for clients, and it will be available for you throughout the whole machine’s lifespan.
All of our equipment comes with a warranty and a guaranteed return policy.

Materials

The Wattsan fiber laser engravers can process

Acrylic

Aluminium

Brass

Cardboard

Copper

Glass

Leather

Plactic

Plywood

Stainless steel

Stone

Wood

Package list

1pc

USB flash drive

1pc

The marker pedal (Foot switch)

1pc

Hex wrench set

1pc

Power cable

1pc

USB cable

1pc

Clamping lever

1pc

Protective glasses in a case

2pc

Key set

Technical
characteristics

Dimensions

Lens working area

50x50, 100x100, 140x140 mm

Machine size

20/30 W: Box - 255 x 135 x 200 mm

Head - 270 x 166 x 273 mm

50W: Box - 275 x 150 x 200 mm

Head - 270 x 166 x 273 mm

Weight

20/30 W: Box - 6 kg; Head - 1,25 kg

50W: Box - 6,5 kg; Head - 1,25 kg

Packing size

650 x 320 x 650 mm

Packing height

26 kg

Optics

Laser source

RayMax/MaxPhotonics

Source power

20/30/50 W

Wave length

1064 nm

Laser output frequency

27-60 kHz

Lens

F-Theta

General

Marker type

Handheld

Cooling type

Air

Source life

100 000 h

Marking speed

10000 mm/s

Working temperature

10-40 С°

Built-in encoder

Yes

Portable case

Yes

Electronics

Control system

Linux operating system

File formats

Software supports text, pattern, QR code, barcode, serial number, graphics and other marking content (standard USB input)

Power consumption

500W / 100-240V / 50/60Hz

Options

Additional lens

50x50, 100x100, 140x140 mm

Laser source
JPT, Raycus, DAVI

File transfer
Wifi, Lan, USB

Scanator
Original Sino-Galvo

Software
EzCad

CorelDraw, Photoshop, AutoCAD
BMP, GIF, JPG, TIFF, PLT, DXF, AI, SVG

Make a request

Logistics

We will deliver the equipment under the most convenient conditions for you

If the machine is not in stock when you purchase it, you must first wait for the assembly process to be completed. It can take at least three weeks (and up to six months). The delivery time itself ranges from 0 days to a month.

We may deliver on various terms. The most popular ones are EXW, FOB, CIF, and DDP. You can have a machine delivered to your workplace, the destination port, or you can organise the delivery yourself by contacting logistics providers.

EXW is the most basic shipment type, FOB and CIF may be considered the golden mean, and DDP is the most convenient.
