3d Dynamic Focusing Fiber Laser Marking Machine Wattsan 3D

Name: 3d Dynamic Focusing Fiber Laser Marking Machine Wattsan 3D
Brand: Wattsan
Price: 1868 USD
Availability: InStock
Rating: 5.0 (8 reviews)

Laser power
Laser source
Work area
Marker type
Lens working area
Machine size

5-100 W
JPT (LP/M7), IPG, RAYCUS, JPT SEAL, RF DAVI
200 x 200 mm
Table type
from 50x50 to 300x300 mm
FL: 870 x 400 x 740 mm

All characteristics

Package list

Get a price

Laser marker Wattsan 3D titul for pluses

Marking deep, 3D engravings even on uneven surfaces is possible with the Wattsan 3D Laser Marker. For that, it has an autofocus system that corrects the positioning of the laser beam in relation to the material. Wattsan 3D can process various materials such as metal, leather, rubber, wood, bamboo products, tile, plastic, marble, jade, etc.
It can be used in advertising, jewelry, medicine, electronics, automotive production, and other fields.

The JCZ G3-3D scanning system is suitable for complex and curved surface processing, marking, and 3D deep engraving. This system is a perfect choice if you are working with unique-shaped or individual workpieces, since it uses an advanced dynamic laser beam compensation algorithm with point-by-point tracking.
Thanks to the synchronous movement of the Z, X, and Y axes, the machine provides a stable laser beam size, high speed of work, and quality.

Make a request

The best components to provide speed and precision

Sino-Galvo scanners

OPEX lenses, F-Theta system

It's responsible for directing the laser beam on the material’s surface. At Wattsan, we use Sino-Galvo scanners. They have high marking and positioning speed.

The lens is focusing the beam on the material surface. The main advantage of F-Theta lenses is the ability to maintain the same focusing point along the whole working area. Focal length and working area sizes are strictly related.

Sino-Galvo scanners for laser marking machines

F-theta lens OPEX for laser marking machines

See Our Laser Markers in Action: Marking and Engraving Across Various Materials

All about the machine in 60 seconds

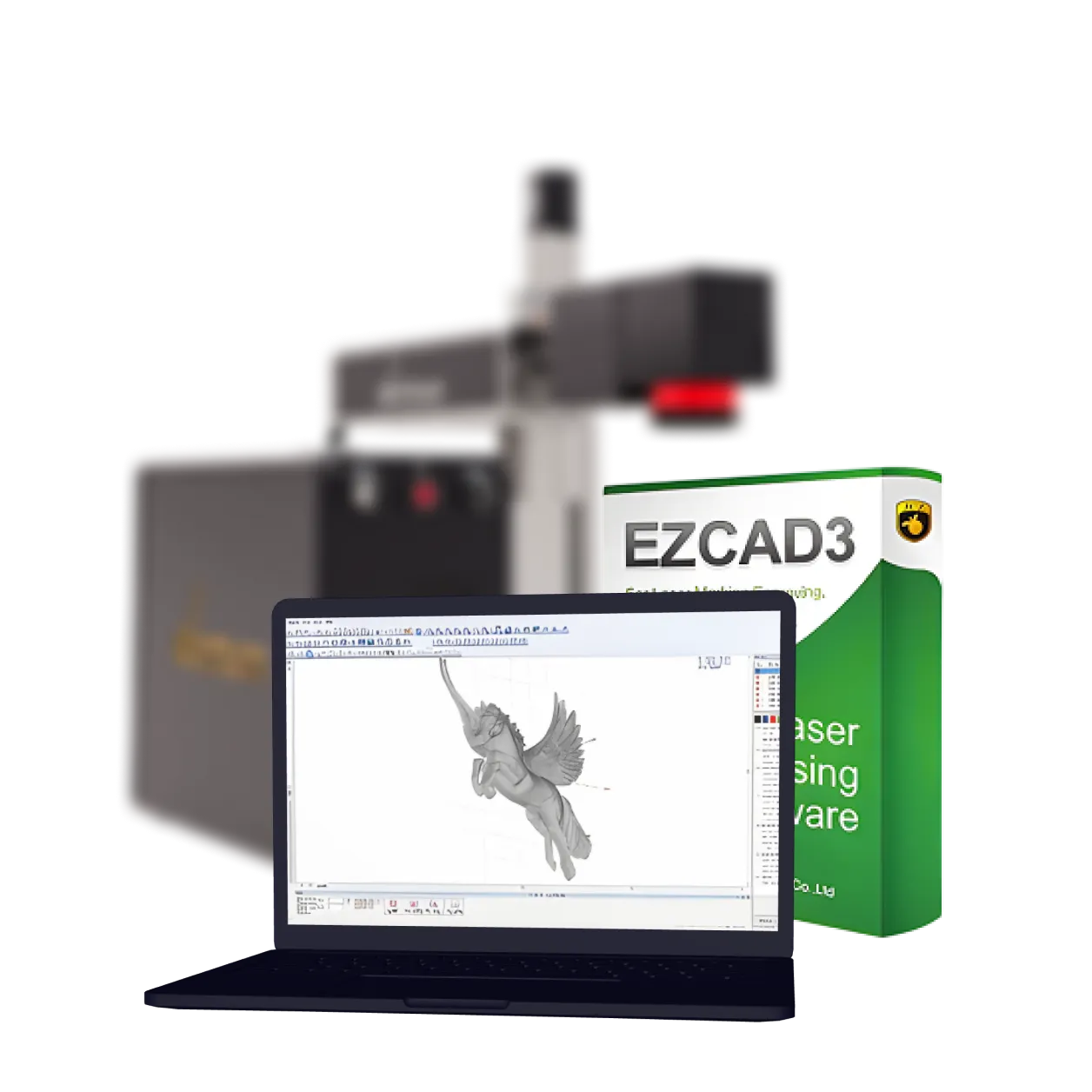

Laser marker Wattsan 3D with EZCAD3 software

The EZCAD software is extremely powerful and unleashes the potential of any source, enabling both color engraving and depth engraving. With integrated 2D and 3D functions, it also supports high-performance motion control to handle multiple formats. Supports 3D model formats such as STL and DXF.

3D scanner for for laser marking machines

The Ezcad3 software and the DLC editor used with the G3 3D galvanometer scanner adopt a high-intensity laser beam correction algorithm. The dynamic zoom system range of ±30 mm (174-254 mm lens) comes with high-precision calibration.

Individualize machine for your production.

Autofocus

Automatically measures the distance to the material being
processed using a sensor, convenient and easy to use.

Motorised Z-axis movement of the scanner for laser marking machines

Motorized z-axis

Our laser markers can be equipped with an motorized z-axis which can adjust the focus length up & down automatically.

Series comparison

SERIES/
Parameters

Marker type

Laser source

Laser power

RF DAVI

Learn more

Stand

DAVI

50-60 W

CO2 LT

Learn more

Table type

CO2

40 W

FL ST

Learn more

Stand

IPG, MAX, RAYCUS

20-100 W

FL TT

Learn more

Table type

IPG, MAX, RAYCUS, JPT (MOPA)

20-100 W

FL BOX

Learn more

Table type

IPG, MAX, RAYCUS, JPT (MOPA)

20-100 W

FL HH

Learn more

Handheld

IPG, MAX, RAYCUS

20-100 W

UV TT

Learn more

Table type

JPT ( Seal-355-5E )

3-20 W

FL Compact

Learn more

Table type

JPT (LP/M7), IPG, RAYCUS, JPT SEAL

3-60 W

FL GT

Learn more

Stand

JPT (LP/M7), IPG, RAYCUS, JPT SEAL, DAVI

3-300 W

FM

Learn more

Stand

JPT (LP/M7), DAVI, RAYCUS, JPT SEAL

5-100 W



Learn more	Learn more
Marker type

Laser source

Laser power

We ensure the smooth running of Wattsan machines

Startup & Training

Service & Support

Wattsan service engineers help clients and all partners around the world via online or offline training. You can get info on maintenance, basic machine operations, tips for processing various materials, etc. We launch and train more than 100 clients monthly.

Our service team operates across the world, and Wattsan machines are presented even in Antarctica. We offer an offline and online support system for clients, and it will be available for you throughout the whole machine’s lifespan.
All of our equipment comes with a warranty and a guaranteed return policy.

Materials

The Wattsan fiber laser engravers can process

Acrylic

Aluminium

Brass

Cardboard

Copper

Glass

Leather

Plactic

Plywood

Stainless steel

Stone

Wood

Package list

1pc

USB flash drive

1pc

The marker pedal (foot switch)

1pc

Power cable

1pc

USB cable

1pc

Clamping lever

1pc

Protective glasses in a case

2pc

Key set

Technical
characteristics

Dimensions

Lens working area

from 50x50 to 300x300 mm

Machine size

FL: 870 x 400 x 740 mm

UV: 1010 x 420 x 1000 mm

UV with chiller: 990 x 590 x 1000 mm

Weight

FL: 52 kg

UV: 77 kg

Packing size

FL: 820 x 490 x 850 mm

UV: 960 x 500 x 1100 mm

UV with chiller: 940 x 680 x 1130 mm

Packing weight

FL: 57 kg

UV: 82 kg

UV with chiller: 115 kg

General

Marker type

Table type

Cooling type

Air (for fiber and RFsources)/Water (for uv source)

Laser source life

100 000 h for fiber and UV sources/20 000 h for RF source

Engraving speed

4000 mm/s

Desktop type

Static

Working temperature

10-40 С°

Protective case

Pedal

Yes

Options

Additional lens

from 50x50 to 300x300 mm

Rotary device

Option

Auto focus (rangefinder)

Option

Optics

Laser source

JPT (LP/M7), IPG, RAYCUS, JPT SEAL, RF DAVI

Fiber laser power

20/30/50/60/100 W

UV laser power

5/10/15/20 W

Laser power for CO2 source

30/60/100 W

Wave length

1064 nm (for fiber laser)/355 nm (for uv laser)/10640 nm (for CO2 laser)

Pulse duration

JPT M7 (MOPA): 2-500 ns

JPT LP: 200 ns

Raycus (Q-switch): 120-290 ns (depends on the power of the source)

JPT SEAL (UV): 20 ns

RF DAVI: -

Laser output frequency

JPT M7 (MOPA): 1-4000 kHz

JPT LP: 1 ~ 600 kHz

Raycus (Q-switch): 30-120 kHz (depends on the power of the source)

JPT SEAL (UV): 20-300 kHz (depends on the power of the source)

RF DAVI: 0 ~ 100kHz (depends on the power of the source)

Lens

F-Theta

Electrics

Controller

BJJCZ DLC2-M4-3D

Software

EZCAD3

File formats

PLT, DXF, Al, DST, SVG, GBR, NC, JPC, BOT

BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF, Supports segmented processing

Three-dimensional model files

STL, DXF

Power consumption

Depends on the type and power of the source

Laser source
JPT, Raycus, DAVI

File transfer
Wifi, Lan, USB

Scanator
Original Sino-Galvo

Software
EzCad

CorelDraw, Photoshop, AutoCAD
BMP, GIF, JPG, TIFF, PLT, DXF, AI, SVG

Make a request

Logistics

We will deliver the equipment under the most convenient conditions for you

If the machine is not in stock when you purchase it, you must first wait for the assembly process to be completed. It can take at least three weeks (and up to six months). The delivery time itself ranges from 0 days to a month.

We may deliver on various terms. The most popular ones are EXW, FOB, CIF, and DDP. You can have a machine delivered to your workplace, the destination port, or you can organise the delivery yourself by contacting logistics providers.

EXW is the most basic shipment type, FOB and CIF may be considered the golden mean, and DDP is the most convenient.
