Wattsan 1820 Cam Conveyor PRO CO2 laser with high-resolution industrial CCD camera for large-format edge detection automatic identification and cutting of textile materials

CO2 Laser Fabric Cutter With CCD Camera - Wattsan 1820 CAM Conveyor PRO 1820
CAM CONVEYOR PRO

  • Work area
  • Tube power
  • Max engraving speed
  • Dimensions
  • Net weight
  • Packing size
  • 1800 x 2000 mm
  • 150-180 W
  • up to 1200 mm/s
  • 3800 x 2300 x 2600 mm
  • 1250 kg
  • 3680 x 2300 x 1600 mm
All characteristics
Package list

Whatsapp
Get a price
Wattsan 1820 Cam Conveyor PRO CO2 laser with high-resolution industrial CCD camera for large-format edge detection automatic identification and cutting of textile materials
Wattsan 1820 Cam Conveyor PRO CO2 laser with Lenze servo motors
Wattsan 1820 Cam Conveyor PRO CO2 laser with lightweight rigid aluminum gantry
Wattsan 1820 Cam Conveyor PRO CO2 laser with a 150–180 W CDWG laser tube
Wattsan 1820 Cam Conveyor PRO CO2 laser with CCD camera for automatic material contour recognition and registration mark detection
Wattsan 1820 Cam Conveyor PRO CO2 laser with conveyor table for processing roll-form fabric materials

CCD Vision Laser Cutter for Fabrics

The 1820 Cam Conveyor PRO combines high-speed cutting with an industrial CCD camera for fully automatic contour recognition and material alignment. Across the full 1800×2000 mm conveyor-fed work surface, the camera detects edges, extracts contours, and matches marks across the entire work zone.
Lenze servo motors drive both gantries cutting speed up to 1200 mm/s, while a 150–180 W CDWG laser tube cuts leather, faux leather, linen, tweed, wool, silk, chiffon, organza, and other roll materials — with repositioning accuracy under 0.01 mm.

Lenze Servo Motors
Precision at Full Speed

Cut fabrics and roll materials at up to 1200 mm/s. Less idle time, more output — every second counts on a production floor.

Lightweight Rigid Gantry

An oversized aluminum gantry profile preserves cutting accuracy at high speeds, delivering smooth, stable motion across the full work surface.

CDWG Laser Tube

Equipped with a 150–180 W CDWG laser tube, this machine cuts and engraves non-metallic materials up to 25 mm thick. Combined with the conveyor table and servo drives, it handles fabric, leather, faux leather, and other roll materials with ease.

Machine vision for Recognition and Perfect Alignment

A high-resolution industrial CCD camera for working with large-format materials, as well as for high-precision automatic recognition and cutting. It can simultaneously extract the outline of a design or align elements across the entire working surface.

Conveyor Table — Non-Stop Production Flow

The conveyor table distributes the material evenly across the work surface and performs continuous cutting of fabrics and other roll materials.

Make a request

    The frame structure makes the machines Wattsan unique

    Frame construction
    Hull thickness
    The frame of the machine relieves vibration, especially during engraving, because the greatest moment of inertia is achieved during engraving.

    It is important to keep in mind the accuracy of the machine as well.
    The increased enclosure thickness is designed to reduce vibration during engraving.

    Wattsan machines have an enclosure thickness of 2.7 mm.
    The extra enclosure thickness increases machine life and performance.
    wattsan-img wattsan-img
    wattsan-img wattsan-img

    Rigid, Light, and Relentlessly Fast

    More Torque, More Speed
    Built Light, Built Stiff
    Several sets of servo motors deliver high torque, enabling rapid acceleration up to 1200 mm/s and rapid deceleration, ensuring maximum precision.
    Made from high-strength aluminium alloy. Its light weight and high rigidity ensure high cutting speeds, smooth movement and precise positioning.

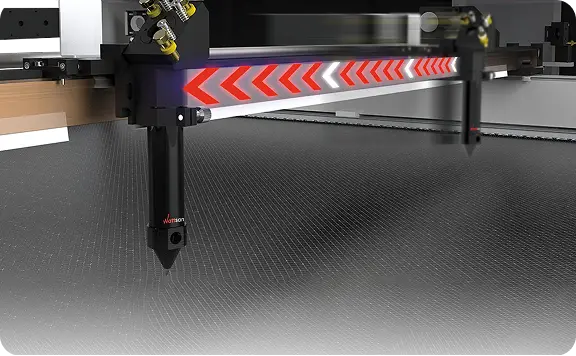

    Lenze servo motors for Wattsan laser CO2 machine Lenze servo motors for Wattsan laser CO2 machine

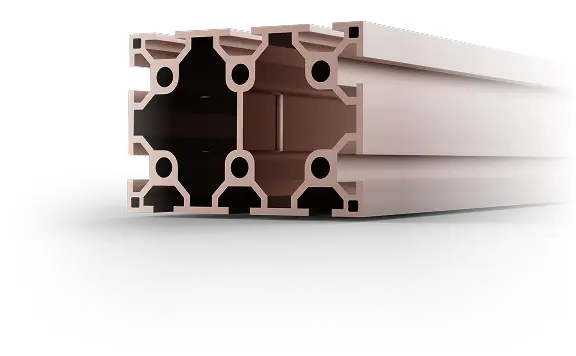

    Aluminum enchanced gantry for Wattsan laser CO2 machine Aluminum enchanced gantry for Wattsan laser CO2 machine

    WATTSAN – getting stronger with every new customer!

    Full-Surface Vision Intelligence
    Wattsan laser co2 machine with CCD camera for working with large-format materials, as well as for high-precision automatic recognition and cutting

    Wattsan machines are equipped with a potentiometer designed to work at power below 10%, this feature allows one to use even powerful tubes for engraving, without losing quality due to the smaller area of the laser beam.

    Wattsan laser CO2 machine with Trocen AW7824 control system

    Supports automatic edge detection and pattern-matching for continuous cutting workflows. Features include graphic nesting, sharp-corner smoothing, and multi-point positioning.

    More than 300 improvements have been made to the design of Wattsan machines

    wattsan-img

    Сonnector to nozzle

    Proper design prevents bursting, even at high pressures

    wattsan-img

    Location of belts

    Belts are positioned over the gantry for easy maintenance and to prevent heat during cutting

    wattsan-img

    Polyurethane air supply tubes

    Withstands up to 8 atmospheres of bursting pressure.

    wattsan-img

    Mechanical protection

    Protects the moving parts of the lift and lowering table from the ingress of small residues

    wattsan-img

    Chain for table lifting and lowering

    In combination with an asynchronous motor, the load on the working table is up to 80 kg, no misalignment of the table in the horizon.

    wattsan-img

    Belt reduction gear

    The combination of a three-phase stepper motor with a 4:1 belt reducer allows you to get high engraving quality up to 2500 DPI.

    wattsan-img

    Correct position of stepper motors

    The stepper motor is centered on the shaft on the Y-axis for even load distribution, which greatly increases its service life and accuracy in the production of small parts.

    Series comparison

    SERIES/
    Parameters

    Working area

    Weight

    Laser power

    ZnSe lens

    Focal length

    Lifting table

    Control system

    Power consumption

    Through table

    XY axis structure

    slide-image

    Wattsan 0503 Hobby-T

    Learn more

    500 x 300 mm

    49 kg

    55 W

    18 mm

    38 mm

    Manual

    Ruida RDC8445S

    640 W

    Yes. (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    0203 Micro

    Learn more

    200 х 300 mm

    40 kg

    40 W

    18 mm

    38 mm

    No

    M3

    350 W

    No

    Round guide/Roller

    slide-image

    0503

    Learn more

    500 х 300 mm

    98 kg

    60W

    18 mm

    38 mm

    Manual

    Ruida RDC8445S

    640 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    6040

    Learn more

    600 х 400 mm

    110 kg

    80-90 W

    18 mm

    38 mm

    Manual

    Ruida RDC8445S

    740 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    6090 LT

    Learn more

    600 x 900 mm

    350 kg

    80-90 W

    20 mm

    50 mm

    Yes

    Ruida RDC8445S

    1550 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    6090 ST

    Learn more

    600 х 900 mm

    200 kg

    80-90 W

    20 mm

    50 mm

    No

    Ruida RDC8445S

    1500 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    1290 LT

    Learn more

    1200 х 900 mm

    400 kg

    100-120 W

    20 mm

    50 mm

    Yes

    Ruida RDC8445S

    2050 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    1290 ST

    Learn more

    1200 х 900 mm

    400 kg

    100-120 W

    20 mm

    50 mm

    No

    Ruida RDC8445S

    2000 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    1610 LT

    Learn more

    1600 х 1000 mm

    470 kg

    100-120 W

    20 mm

    50 mm

    Yes

    Ruida RDC8445S

    2050 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    1610 ST

    Learn more

    1600 х 1000 mm

    400 kg

    100-120 W

    20 mm

    50 mm

    No

    Ruida RDC8445S

    2000 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    1290 DUOS LT

    Learn more

    1200 х 900 mm

    500 kg

    100-120 W

    20 mm

    50 mm

    Yes

    Ruida RDC8445S

    2050 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    1290 DUOS ST

    Learn more

    1200 х 900 mm

    500 kg

    100-120 W

    20 mm

    50 mm

    No

    Ruida RDC8445S

    2000 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    1610 DUOS LT

    Learn more

    1600 x 1000 mm

    488 kg

    100-120 W

    20 mm

    50 mm

    Yes

    Ruida RDC8445S

    3400 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    1610 DUOS ST

    Learn more

    1600 х 1000 mm

    488 kg

    100-120 W

    20 mm

    50 mm

    No

    Ruida RDC8445S

    3350 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    1610 CAM CONVEYER

    Learn more

    1600 x 1000 mm

    770 kg

    100-120 W

    20 mm

    50 mm

    No

    Ruida RDC8445S

    3500 W

    Yes (Y-axis)

    Roller metal, metal rollers

    slide-image

    1610 DUOS CONVEYER

    Learn more

    1600 x 1000 mm

    708 kg

    100-120 W

    20 mm

    50 mm

    No

    Ruida RDC8445S

    3500 W

    Yes (Y-axis)

    Roller metal, metal rollers

    slide-image

    NC-C 1612

    Learn more

    1600 x 1200 mm

    680 kg

    130-160 W

    20 mm

    50 mm *options

    Yes

    Ruida RDC8445S

    3500 W

    Yes (Y-axis)

    Roller metal, metal rollers

    slide-image

    2030 FLAT BED

    Learn more

    2000 x 3000 mm

    800 kg

    100-120 W

    20 mm

    50 mm

    No

    Ruida RDC8445S

    2800 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    6090 ST

    Learn more

    600 х 900 mm

    256 kg

    80-90 W

    20 mm

    50 mm

    No

    Ruida RDC8445

    1500 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    6090 LT

    Learn more

    600 х 900 mm

    256 kg

    80-90 W

    20 mm

    50 mm

    Yes

    Ruida RDC8445

    1500 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    1290 ST

    Learn more

    1200 х 900 mm

    340 kg

    100-120 W

    20 mm

    50 mm

    No

    Ruida RDC8445

    1500 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    1290 LT

    Learn more

    1200 х 900 mm

    362 kg

    100-120 W

    20 mm

    50 mm

    Yes

    Ruida RDC8445

    1500 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    1610 ST

    Learn more

    1600 х 1000 mm

    400 kg

    100-120 W

    20 mm

    50 mm

    No

    Ruida RDC8445

    1500 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    1610 LT

    Learn more

    1600 х 1000 mm

    450 kg

    100-120 W

    20 mm

    50 mm

    Yes

    Ruida RDC8445

    1500 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    6090 PRO

    Learn more

    900 x 600 mm

    362 kg

    100-120 W

    20 mm

    50 mm

    Yes

    Ruida RDC8445

    2000 W

    Yes. (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    1290 PRO

    Learn more

    1200 х 900 mm

    -

    100-120 W

    20 mm

    20 mm

    Yes

    Ruida RDC8445

    2000 W

    Yes. (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    1610 PRO

    Learn more

    1600 х 1000 mm

    -

    100-120 W

    20 mm

    50 mm

    Yes

    Ruida RDC8445

    2000 W

    Yes. (Y-axis)

    Linear guide AMT PMI MSB 15S

    ... ...
    Learn more Learn more
    Working area
    Weight
    Laser power
    ZnSe lens
    Focal length
    Lifting table
    Control system
    Power consumption
    Through table
    XY axis structure

    We ensure the smooth running of Wattsan machines

    Startup & Training
    Service & Support
    Wattsan service engineers help clients and all partners around the world via online or offline training. You can get info on maintenance, basic machine operations, tips for processing various materials, etc. We launch and train more than 100 clients monthly.
    Our service team operates across the world, and Wattsan machines are presented even in Antarctica. We offer an offline and online support system for clients, and it will be available for you throughout the whole machine’s lifespan.
    All of our equipment comes with a warranty and a guaranteed return policy.
    Startup & Training Startup & Training
    Service & Support Service & Support

    Materials

    The machine is suitable for materials

    img Acrylic
    img Bamboo
    img Ceramic tile
    img Jade
    img Fabric
    img Foam rubber
    img Granite
    img Leather
    img Mdf
    img Paronite
    img Plastic
    img Plywood
    img Resin
    img Rubber
    img Stone
    img Wood
    img Wool
    img Chipboard

    0/0

    Package list

    box-image
    1pc

    Power cable

    box-image
    1pc

    USB cable

    box-image
    1pc

    Ethernet cable

    box-image
    1pc

    Hex wrench set

    box-image
    1pc

    Silicone sealent

    box-image
    1pc

    Masking tape

    box-image
    1pc

    Hose barb

    box-image
    1pc

    Water pump

    box-image
    1pc

    Manual

    box-image
    1pc

    Air compressor

    box-image
    4pc

    Silicon tube set

    box-image
    1pc

    USB flash drive

    Technical
    characteristics

    Dimensions
    Net weight
    1250 kg
    Packing size
    3680 x 2300 x 1600 mm
    Packing weight
    1350 kg
    Optics
    Laser tube
    CDWG
    Laser power
    150-180 W
    Diameter of mirrors
    25 mm
    ZnSe lens
    20 mm
    Focal length
    63.5 mm
    Laser tube lifetime
    10000 h
    Mechanics
    Working surface
    Conveyor
    Lifting table
    No
    Camera
    Yes
    Power electrics
    Zhongtai
    Control system
    Trocen AWC7824
    Software
    Trocen LaserVision
    Cutting speed
    up to 1200 mm/s
    Engraving speed
    up to 1200 mm/s
    Cooling
    Water, chiller CW-6000
    Power consumption
    up to 5000W (without pump and chiller)
    Positioning precision
    0,01 mm
    Gantry quantity
    1
    External air compressor
    1680w 30L
    Reposition accuracy
    <0.01 mm
    Extraction rate
    550W (2 pc)
    Power supply
    220V+10% 50Hz
    100V+10% 60Hz
    Through table
    Yes. (Y-axis)
    Engines
    Lenze servo motor
    Engine power on X-axis
    400W
    Engine power on Y-axis
    750W
    Software
    RDL (LaserWork 8)
    File transfer
    Wifi, Lan, USB
    Control system
    RuiDa
    Laser tube
    RECI, LASEA, SPT
    CorelDraw, Photoshop, AutoCAD
    BMP, GIF, JPG, TIFF, PLT, CDR, DXF, AI, SVG
    Make a request

      Logistics
      We will deliver the equipment under the most convenient conditions for you

      If the machine is not in stock when you purchase it, you must first wait for the assembly process to be completed. It can take at least three weeks (and up to six months). The delivery time itself ranges from 0 days to a month.

      We may deliver on various terms. The most popular ones are EXW, FOB, CIF, and DDP. You can have a machine delivered to your workplace, the destination port, or you can organise the delivery yourself by contacting logistics providers.

      EXW is the most basic shipment type, FOB and CIF may be considered the golden mean, and DDP is the most convenient.

      Technical
      characteristics

      Dimensions
      Net weight
      1250 kg
      Packing size
      3680 x 2300 x 1600 mm
      Packing weight
      1350 kg
      Optics
      Laser tube
      CDWG
      Laser power
      150-180 W
      Diameter of mirrors
      25 mm
      ZnSe lens
      20 mm
      Focal length
      63.5 mm
      Laser tube lifetime
      10000 h
      Mechanics
      Working surface
      Conveyor
      Lifting table
      No
      Camera
      Yes
      Power electrics
      Zhongtai
      Control system
      Trocen AWC7824
      Software
      Trocen LaserVision
      Cutting speed
      up to 1200 mm/s
      Engraving speed
      up to 1200 mm/s
      Cooling
      Water, chiller CW-6000
      Power consumption
      up to 5000W (without pump and chiller)
      Positioning precision
      0,01 mm
      Gantry quantity
      1
      External air compressor
      1680w 30L
      Reposition accuracy
      <0.01 mm
      Extraction rate
      550W (2 pc)
      Power supply
      220V+10% 50Hz
      100V+10% 60Hz
      Through table
      Yes. (Y-axis)
      Engines
      Lenze servo motor
      Engine power on X-axis
      400W
      Engine power on Y-axis
      750W
      Software
      RDL (LaserWork 8)
      File transfer
      Wifi, Lan, USB
      Control system
      RuiDa
      Laser tube
      RECI, LASEA, SPT
      CorelDraw, Photoshop, AutoCAD
      BMP, GIF, JPG, TIFF, PLT, CDR, DXF, AI, SVG

      Other products

      alt

      Wattsan 1610 ST
      alt

      Wattsan 1290 ST
      alt

      Wattsan 1610 DUOS ST
      alt

      Wattsan 1290 DUOS ST
      alt

      Wattsan 1610 LT
      alt

      Wattsan 1290 LT

      Contact

      Make a request

        Service & Support
        Leave your contact details and a laser equipment specialist will call you back and help you choose a machine

          [cf7ic "toggle"]
          BECOME A PARTNER

            Preffered means of contact:

            * required fields
            GET IN TOUCH
            Submit your details, and our experts will connect with you soon.

              Preffered means of contact:

              Consent Preferences
              We are the leader of the CNC machine industry.
              © 2003-2026 Jinan Wattsan Technology limited
