Laser engraver machine for wood
0503
- Work area
- Tube power
- Max engraving speed
- Dimensions
- Net Weight
- 500 x 300 mm
- 60W
- 700 mm
- 650 mm * 1040 mm * 575 mm
- 104kg
All characteristics
Technical
characteristics
Dimensions
Net Weight
104kg
Optics
Laser power
60W
Engraving depth
Max. cutting thickness
5-6 mm
Mirror Diameter
25 mm
ZnSe lens
18
Focus distance
38 mm
Laser tube lifetime
7000 h
Mechanics
Working surface
Lamellar table
Lift table
Manual lifting
Working table lowering depth
200 mm
Cutting speed
0-500 mm/s
Engraving Speed
0-700 mm/s
Positioning precision
0,01
Laser cooling
Water
Power
220 ±10% 50Hz
Power consumption
640 W
Through table
Yes. ( Y)
Structure of the axis Y
Linear guide AMT PMI MSB 15S
Structure of the axis X
Linear guide AMT PMI MSB 15S
Engine on X
57-H350B
Engine on Y
57-H350CS / SH (2 shafts)
Software
RDL (LaserWork 8)
RDL (LaserWork 8)
File transfer
Wifi, Lan, USB
Wifi, Lan, USB
Control system
RuiDa RD6445
RuiDa RD6445
Laser tube
RECI, LASEA
RECI, LASEA
CorelDraw, Photoshop, AutoCAD
BMP, GIF, JPG, TIFF, PLT, CDR, DXF, AI, SVG
BMP, GIF, JPG, TIFF, PLT, CDR, DXF, AI, SVG
Laser engraver machine for wood
0503
Medium format laser machine Wattsan 0503 is intended for serial production and cutting of non-metallic materials.
The device is characterized by increased rigidity (frame structure), high-precision processing (positioning accuracy up to 0.01 mm) and ease of operation.
Such a machine will become a powerful basis for small and medium-sized production and will perfectly supplement a large laser workshop.
Reduced area nozzle
Guarantees the cleanest cut on all types of materials, especially plywood and leather. Avoiding secondary material handling when using a standard compressor. Thanks to reinforced hose connections, the design allows for a more powerful compressor.
Mirror mount
Three adjusting bolts make alignment even easier and more convenient
Clamping bolt
Provides additional nozzle adjustment
Retaining ring
Retaining ring with plastic buffer to protect the lens
Tube
Multifunctional lens tube, compatible with three kinds of lenses
Nozzle
A nozzle with a small diameter hole that allows for a more powerful airflow
Tube holder
Polyurethane tubing that prevents the tubing from falling off the head at pressures up to 8 atmospheres, 4 times more load capacity than conventional connectors
Make a request

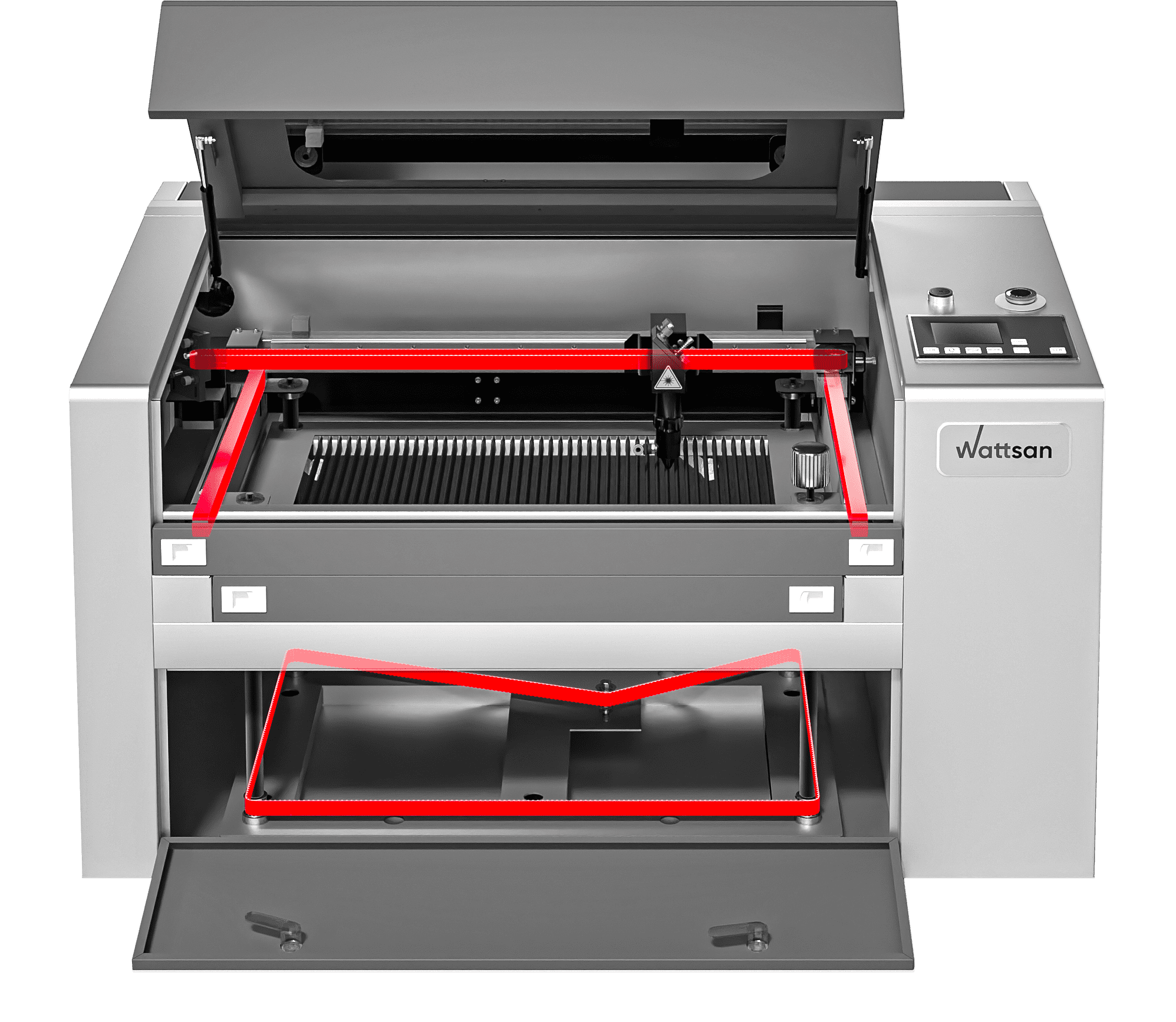

The frame structure makes the machines Wattsan unique
Frame construction
Hull thickness
The frame of the machine relieves vibration, especially during engraving, because the greatest moment of inertia is achieved during engraving.
It is important to keep in mind the accuracy of the machine as well.
It is important to keep in mind the accuracy of the machine as well.
The increased enclosure thickness is designed to reduce vibration during engraving.
Wattsan machines have an enclosure thickness of 2.9 mm or greater on machines like the 1610 and larger.
The extra enclosure thickness increases machine life and performance.
Wattsan machines have an enclosure thickness of 2.9 mm or greater on machines like the 1610 and larger.
The extra enclosure thickness increases machine life and performance.
High accuracy of engraving at high speeds for decades
Enhanced Portal
3M belts
The reinforced portal seriously affects the accuracy of the machine, the lack of vibrations, durability, the speed of movement and the inertia of the equipment.
3M belts with increased tooth size are used; such belts serve longer and are not prone to abrasion. The material of the belts is especially important, unlike poleuritan belts, the 3M belts prevent the occurrence of a coin cut since no flapping occurs during stretching.
WATTSAN machines work all over the world
This obliges us to make improvements not only to the machine design that increase reliability and durability, but also to the improvements aimed at different applications.
The world's largest jigsaw puzzle client. 30% of plywood puzzles are made on Wattsan machines.
Eliminates fouling on the back side of the material. Anodized lamellas eliminate beam blast to the back side of the material.
Coin Cut. The 4:1 belt reducers and 3M belts eliminate coin cutting!
Engraving leather with a long lens. For better leather engraving, use a long lens, longer distance to the material less blowing.
The use of two types of nozzles when working with plywood. The truncated nozzle increases blowing, improving the quality of the cut, reducing the cost of the product by 30%.
The speed of engraving in large production runs. The reinforced gantry allows high engraving quality at high speed.
WATTSAN – getting stronger with every new customer!
All about the machine in 60 seconds
Laser tube power rheostat and universal mounting
Wattsan machines are equipped with a potentiometer designed to work at power below 10%, this feature allows one to use even powerful tubes for engraving, without losing quality due to the smaller area of the laser beam.
The adjustable laser tube mounts allow the use of laser tubes of various lengths and diameters and, in combination with adjustable mirrors, facilitate machine setup and alignment.
More than 50 improvements have been made to the design of Wattsan machines
Сonnector to nozzle
Location of belts
Polyurethane air supply tubes
Mechanical protection
Chain for table lifting and lowering
Belt reduction gear
Correct position of stepper motors
etc.
Make a request
Proper design prevents bursting, even at high pressures
Belts are positioned over the gantry for easy maintenance and to prevent heat during cutting
Withstands up to 8 atmospheres of bursting pressure.
Protects the moving parts of the lift and lowering table from the ingress of small residues
In combination with an asynchronous motor, the load on the working table is up to 80 kg, no misalignment of the table in the horizon.
The combination of a three-phase stepper motor with a 4:1 belt reducer allows you to get high engraving quality up to 2500 DPI.
The stepper motor is centered on the shaft on the Y-axis for even load distribution, which greatly increases its service life and accuracy in the production of small parts.
We take a set of measures for the trouble-free operation of Wattsan machines
Service support
Startup and training
All Wattsan engineers undergo mandatory annual training in order to quickly resolve any issues.
Wattsan provides annual machine operation and maintenance training for all partners around the world. We launch and train more than 100 clients monthly.
The machine is suitable for materials
01 Plywood
02 Wood
03 Plexiglass
04 Stone
05 Glass
06 Rubber
07 Leather
Technical
characteristics
Dimensions
Net Weight
104kg
Optics
Laser power
60W
Engraving depth
Max. cutting thickness
5-6 mm
Mirror Diameter
25 mm
ZnSe lens
18
Focus distance
38 mm
Laser tube lifetime
7000 h
Mechanics
Working surface
Lamellar table
Lift table
Manual lifting
Working table lowering depth
200 mm
Cutting speed
0-500 mm/s
Engraving Speed
0-700 mm/s
Positioning precision
0,01
Laser cooling
Water
Power
220 ±10% 50Hz
Power consumption
640 W
Through table
Yes. ( Y)
Structure of the axis Y
Linear guide AMT PMI MSB 15S
Structure of the axis X
Linear guide AMT PMI MSB 15S
Engine on X
57-H350B
Engine on Y
57-H350CS / SH (2 shafts)
Software
RDL (LaserWork 8)
RDL (LaserWork 8)
File transfer
Wifi, Lan, USB
Wifi, Lan, USB
Control system
RuiDa RD6445
RuiDa RD6445
Laser tube
RECI, LASEA
RECI, LASEA
CorelDraw, Photoshop, AutoCAD
BMP, GIF, JPG, TIFF, PLT, CDR, DXF, AI, SVG
BMP, GIF, JPG, TIFF, PLT, CDR, DXF, AI, SVG
