laser cutter engraver duos machine

Laser cutter engraver machine for wood 1610
DUOS ST

  • Work area
  • Tube power
  • Max engraving speed
  • Dimensions
  • Net Weight
  • 1600 x 1000 mm
  • 100-120 W
  • 500 mm
  • 1790x1410x670 mm + 315 mm (if on its wheels)
  • 488 kg
wattsan-img
wattsan-img
wattsan-img
wattsan-img
wattsan-img
wattsan-img

Save up to 70% on production with laser cutting machines

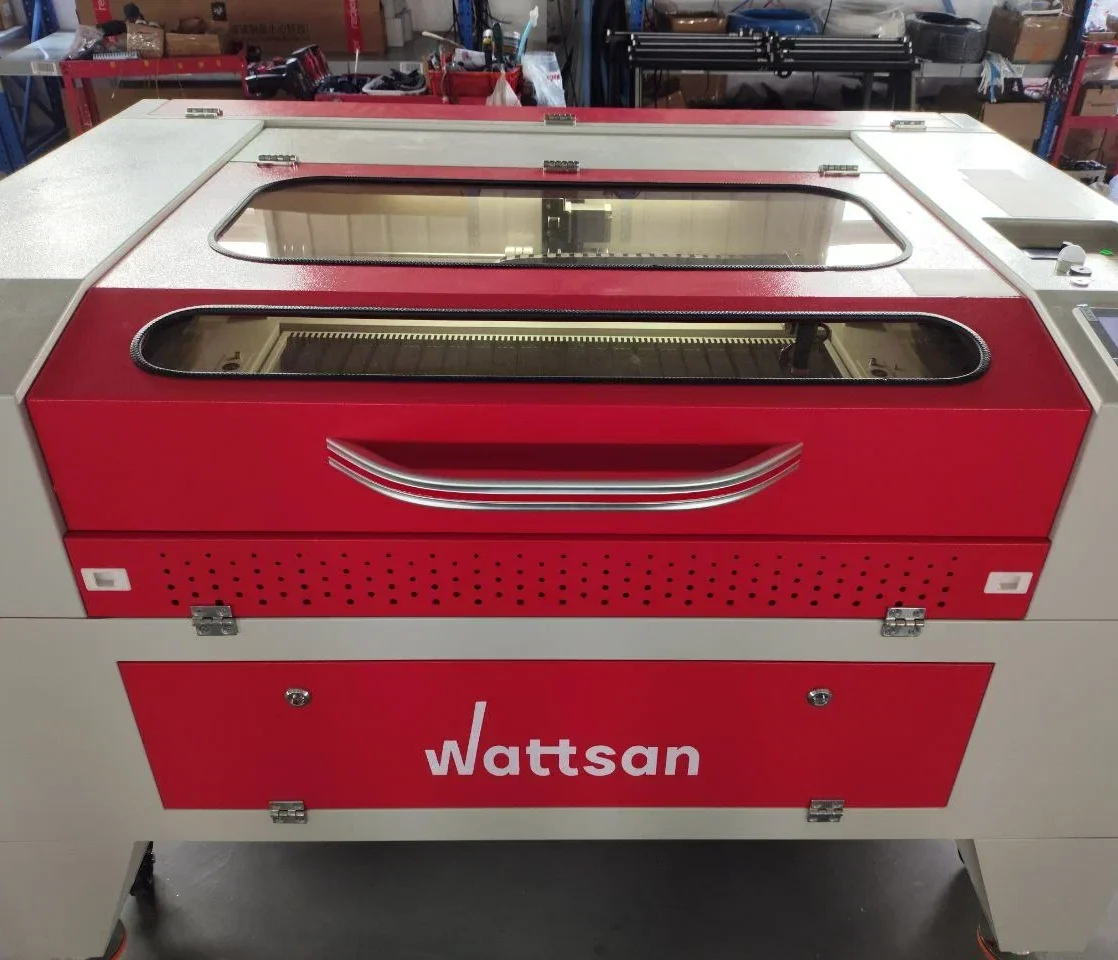

The Wattsan 1610 DUOS ST medium format laser machine is designed for mass production and cutting non-metallic materials.

The machine is designed for cutting most materials in full size. The second cutting head greatly speeds up production.

Anodized lamellae helps to avoid backfiring the laser beam into the laser head or into the operator

Universal mounts

Allows the use of different diameter and length laser tube, vertical and horizontal adjustment speeds up the alignment of the machine

The frame structure makes Wattsan machines unique

The machine frame removes vibrations, especially during engraving, since the greatest moment of inertia is achieved during engraving. It is important to remember the accuracy of the machine.

The increased thickness of the body is designed to reduce vibrations arising during engraving.

On Wattsan machines, the body thickness is 2.9 mm or higher on machines such as 1610 and larger. The additional thickness of the frame body increases the service life of the machine and its problem-free operation.

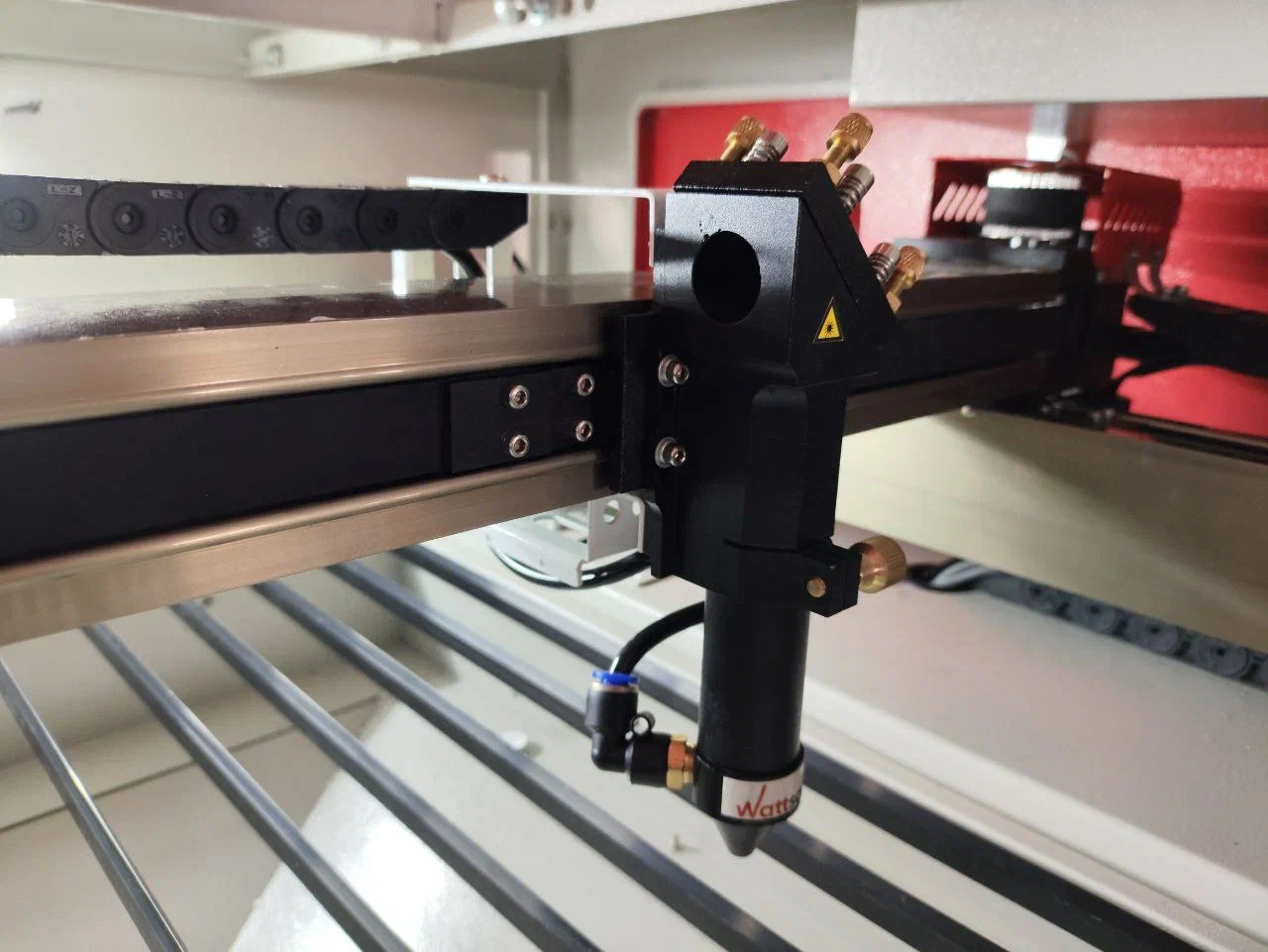

Two working heads

That is why the machine is called DUOS. The two heads work synchronously with a minimum distance of 130 mm from each other, which speeds up the production process of serial products in half.

Enhanced Portal

Allows you to work at high speeds without causing vibrations. Ensures uniform cutting through the entire table area.

Stepper motors and belt drives

Three-phase stepper motors have a smaller pitch and the result is higher engraving quality. The belt gearbox (4:1) crushes the pitch and reduces the voltage from the stepper motor.

Reduced area nozzle

Guarantees the cleanest cut on all types of materials, especially plywood and leather. Avoiding secondary material handling when using a standard compressor. Thanks to reinforced hose connections, the design allows for a more powerful compressor.

Nozzles are supplied in 2 modifications, for engraving and cutting

wattsan-img

Mirror mount

Three adjusting bolts make alignment even easier and more convenient

wattsan-img

Clamping bolt

Provides additional nozzle adjustment

wattsan-img

Retaining ring

Retaining ring with plastic buffer to protect the lens

wattsan-img

Tube

Multifunctional lens tube, compatible with three kinds of lenses

wattsan-img

Nozzle

A nozzle with a small diameter hole that allows for a more powerful airflow

wattsan-img

Tube holder

Polyurethane tubing that prevents the tubing from falling off the head at pressures up to 8 atmospheres, 4 times more load capacity than conventional connectors

    The frame structure makes the machines Wattsan unique

    Frame construction
    Hull thickness
    The frame of the machine relieves vibration, especially during engraving, because the greatest moment of inertia is achieved during engraving.

    It is important to keep in mind the accuracy of the machine as well.
    The increased enclosure thickness is designed to reduce vibration during engraving.

    Wattsan machines have an enclosure thickness of 2.9 mm.
    The extra enclosure thickness increases machine life and performance.
    wattsan-img wattsan-img
    wattsan-img wattsan-img

    High accuracy of engraving at high speeds for decades

    Enhanced Portal
    3M belts
    The reinforced portal seriously affects the accuracy of the machine, the lack of vibrations, durability, the speed of movement and the inertia of the equipment.
    3M belts with increased tooth size are used; such belts serve longer and are not prone to abrasion. The material of the belts is especially important, unlike poleuritan belts, the 3M belts prevent the occurrence of a coin cut since no flapping occurs during stretching.
    wattsan-img
    wattsan-img
    wattsan-img
    wattsan-img
    wattsan-img

    WATTSAN – getting stronger with every new customer!

    All about the machine in 60 seconds

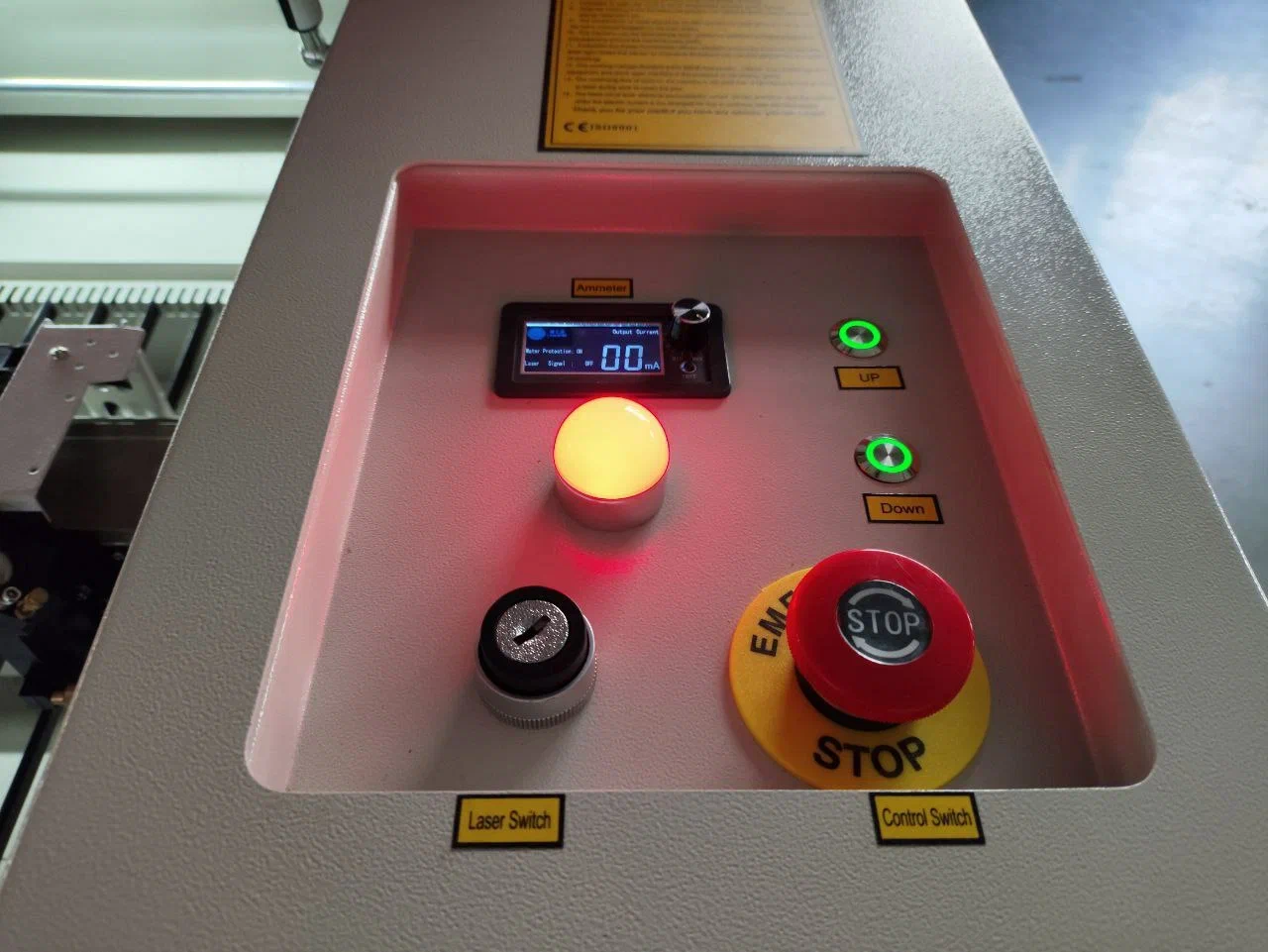

    Laser tube power rheostat and universal mounting
    wattsan-img

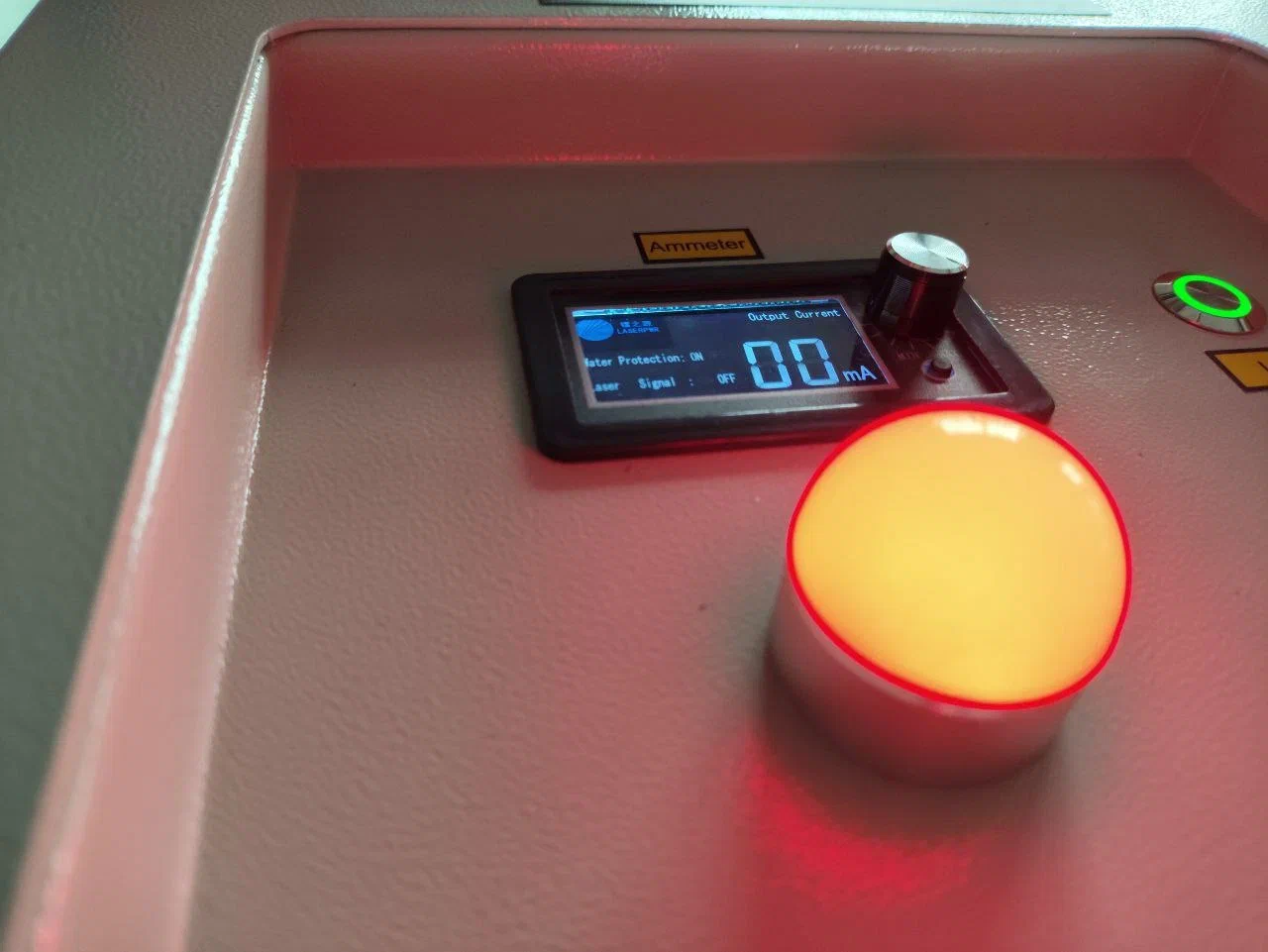

    Wattsan machines are equipped with a potentiometer designed to work at power below 10%, this feature allows one to use even powerful tubes for engraving, without losing quality due to the smaller area of the laser beam.

    wattsan-img

    The adjustable laser tube mounts allow the use of laser tubes of various lengths and diameters and, in combination with adjustable mirrors, facilitate machine setup and alignment.

    More than 50 improvements have been made to the design of Wattsan machines

    Сonnector to nozzle

    Proper design prevents bursting, even at high pressures

    Location of belts

    Belts are positioned over the gantry for easy maintenance and to prevent heat during cutting

    Polyurethane air supply tubes

    Withstands up to 8 atmospheres of bursting pressure.

    Mechanical protection

    Protects the moving parts of the lift and lowering table from the ingress of small residues

    Chain for table lifting and lowering

    In combination with an asynchronous motor, the load on the working table is up to 80 kg, no misalignment of the table in the horizon.

    wattsan-img

    Belt reduction gear

    The combination of a three-phase stepper motor with a 4:1 belt reducer allows you to get high engraving quality up to 2500 DPI.

    Correct position of stepper motors

    The stepper motor is centered on the shaft on the Y-axis for even load distribution, which greatly increases its service life and accuracy in the production of small parts.

    Series comparison

    SERIES/
    Parameters

    Working area

    Weight

    Laser power

    ZnSe lens

    Focal length

    Lifting table

    Control system

    Power consumption

    Through table

    XY axis structure

    slide-image

    0203 micro

    Learn more

    200 х 300 mm

    40 kg

    40 W

    18 mm

    38 mm

    No

    M3

    350 W

    No

    Round guide/Roller

    500 х 300 mm

    98 kg

    60W

    18 mm

    38 mm

    Manual

    Ruida RDC 6445G

    640 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    6040 ST

    Learn more

    600 х 400 mm

    110 kg

    80-90 W

    18 mm

    38 mm

    Manual

    Ruida RDC 6445G

    740 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    6090 LT

    Learn more

    600 x 900 mm

    350 kg

    80-90 W

    20 mm

    50 mm

    Yes

    Ruida RDC 6445G

    1550 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    6090 ST

    Learn more

    600 х 900 mm

    200 kg

    80-90 W

    20 mm

    50 mm

    No

    Ruida RDC 6445G

    1500 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    1290 LT

    Learn more

    1200 х 900 mm

    400 kg

    100-120 W

    20 mm

    50 mm

    Yes

    Ruida RDC 6445G

    2050 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    1290 ST

    Learn more

    1200 х 900 mm

    400 kg

    100-120 W

    20 mm

    50 mm

    No

    Ruida RDC 6445G

    2000 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    1610 LT

    Learn more

    1600 х 1000 mm

    470 kg

    100-120 W

    20 mm

    50 mm

    Yes

    Ruida RDC 6445G

    2050 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    1610 ST

    Learn more

    1600 х 1000 mm

    400 kg

    100-120 W

    20 mm

    50 mm

    No

    Ruida RDC 6445G

    2000 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    1290 DUOS LT

    Learn more

    1200 х 900 mm

    500 kg

    100-120 W

    20 mm

    50 mm

    Yes

    Ruida RDC 6445G

    2050 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    1290 DUOS ST

    Learn more

    1200 х 900 mm

    500 kg

    100-120 W

    20 mm

    50 mm

    No

    Ruida RDC 6445G

    2000 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    1610 DUOS LT

    Learn more

    1600 x 1000 mm

    488 kg

    100-120 W

    20 mm

    50 mm

    Yes

    Ruida RDC 6445G

    3400 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    1610 DUOS ST

    Learn more

    1600 х 1000 mm

    488 kg

    100-120 W

    20 mm

    50 mm

    No

    Ruida RDC 6445G

    3350 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    1610 CAM CONVEYER

    Learn more

    1600 x 1000 mm

    770 kg

    100-120 W

    20 mm

    50 mm

    No

    Ruida RDC 6445G

    3500 W

    Yes (Y-axis)

    Roller metal, metal rollers

    slide-image

    1610 DUOS CONVEYER

    Learn more

    1600 x 1000 mm

    708 kg

    100-120 W

    20 mm

    50 mm

    No

    Ruida RDC 6445G

    3500 W

    Yes (Y-axis)

    Roller metal, metal rollers

    slide-image

    NC-C 1612

    Learn more

    1600 x 1200 mm

    680 kg

    130-160 W

    20 mm

    50 mm *options

    Yes

    Ruida RDC 6432M

    3500 W

    Yes (Y-axis)

    Roller metal, metal rollers

    slide-image

    2030 FLAT BED

    Learn more

    2000 x 3000 mm

    800 kg

    100-120 W

    20 mm

    50 mm

    No

    Ruida RDC 6445G

    2800 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    ... ...
    Working area
    Weight
    Laser power
    ZnSe lens
    Focal length
    Lifting table
    Control system
    Power consumption
    Through table
    XY axis structure

    We ensure the smooth running of Wattsan machines

    Startup & Training
    Service & Support
    Wattsan service engineers help clients and all partners around the world via online or offline training. You can get info on maintenance, basic machine operations, tips for processing various materials, etc. We launch and train more than 100 clients monthly.
    Our service team operates across the world, and Wattsan machines are presented even in Antarctica. We offer an offline and online support system for clients, and it will be available for you throughout the whole machine’s lifespan.
    All of our equipment comes with a warranty and a guaranteed return policy.
    Startup & Training Startup & Training
    Service & Support Service & Support

    The machine is suitable for materials

    01 Plywood

    02 Wood

    03 Plexiglass

    04 Stone

    05 Glass

    06 Rubber

    07 Leather

    wattsan-img
    wattsan-img
    wattsan-img
    wattsan-img
    wattsan-img
    wattsan-img
    wattsan-img

    Technical
    characteristics

    Dimensions
    Net Weight
    488 kg
    Optics
    Laser power
    100-120 W
    Engraving depth
    3 mm
    Max. cutting thickness
    10-13 mm
    Mirror Diameter
    25 mm
    ZnSe lens
    ZnSe D20
    Focus distance
    50 mm
    Laser tube lifetime
    10000 h
    Mechanics
    Working surface
    Blade table
    Cutting speed
    0-500 mm/s
    Engraving Speed
    0-500 mm/s
    Positioning precision
    0,03 mm
    Laser cooling
    Water
    Power
    220 ±10% 50Hz
    Power consumption
    3350 W
    Through table
    Yes. (Y-axis)
    Structure of the axis Y
    Linear guide AMT PMI MSB 15S
    Structure of the axis X
    Linear guide AMT PMI MSB 15S
    Engine on X and on Y
    57-H350C / SH
    Engine for the second head
    57-H350B (option)
    Software
    RDL (LaserWork 8)
    File transfer
    Wifi, Lan, USB
    Control system
    RuiDa RD6445
    Laser tube
    RECI, LASEA
    CorelDraw, Photoshop, AutoCAD
    BMP, GIF, JPG, TIFF, PLT, CDR, DXF, AI, SVG
