Laser CO2 machine DUOS LT series with work area 1200x900 mm and a 100-120 W two laser tubes

CO2 Laser CNC Machine For Cutting And Engraving Wattsan 1290 DUOS LT (2025) 1290
DUOS LT

  • Work area
  • Tube power
  • Max engraving speed
  • Dimensions
  • Net weight
  • Packing size
  • 1200 x 900 mm
  • 100-120 W
  • 500 mm/s
  • 1800 x 1400 x 660 mm + 343 mm (if it is on wheels)
  • 244 kg
  • 1900 x 1660 x 840 mm
All characteristics
Package list

Whatsapp
Get a price
afactory
afactory
afactory
afactory
afactory
afactory
client
client
client
client
Laser CO2 machine DUOS LT series with work area 1200x900 mm
Laser CO2 machine DUOS LT series with work area 1200x900 mm and increase thickness frame
Laser CO2 machine DUOS LT series with work area 1200x900 mm and trash collection compartment
Laser CO2 machine DUOS LT series with work area 1200x900 mm and lifting table
Laser CO2 machine DUOS LT series with work area 1200x900 mm and reinforced enclose motion system
Laser CO2 machine DUOS LT series with work area 1200x900 mm and three-phase stepper motor
Laser CO2 machine DUOS LT series with work area 1200x900 mm and fire alarm
Laser CO2 machine DUOS LT series with work area 1200x900 mm and double laser heads

Maximum Safety, Maximum Precision

The CO2 laser with Wattsan FOX instantly detects fire, protecting operators and your workshop with immediate alerts that reduce downtime.

Fast alignment and precise ammeter control ensure accuracy, while the enclosed motion module and enhanced airflow system enhance safety and ventilation.

Central Y-axis stepper motor and reinforced mounts prevent misalignment, providing stable, high-quality cuts.

Ergonomic design and durable mechanics reduce transport risks and minimize maintenance.

Anodized blades helps to avoid backfiring the laser beam into the laser head or into the operator

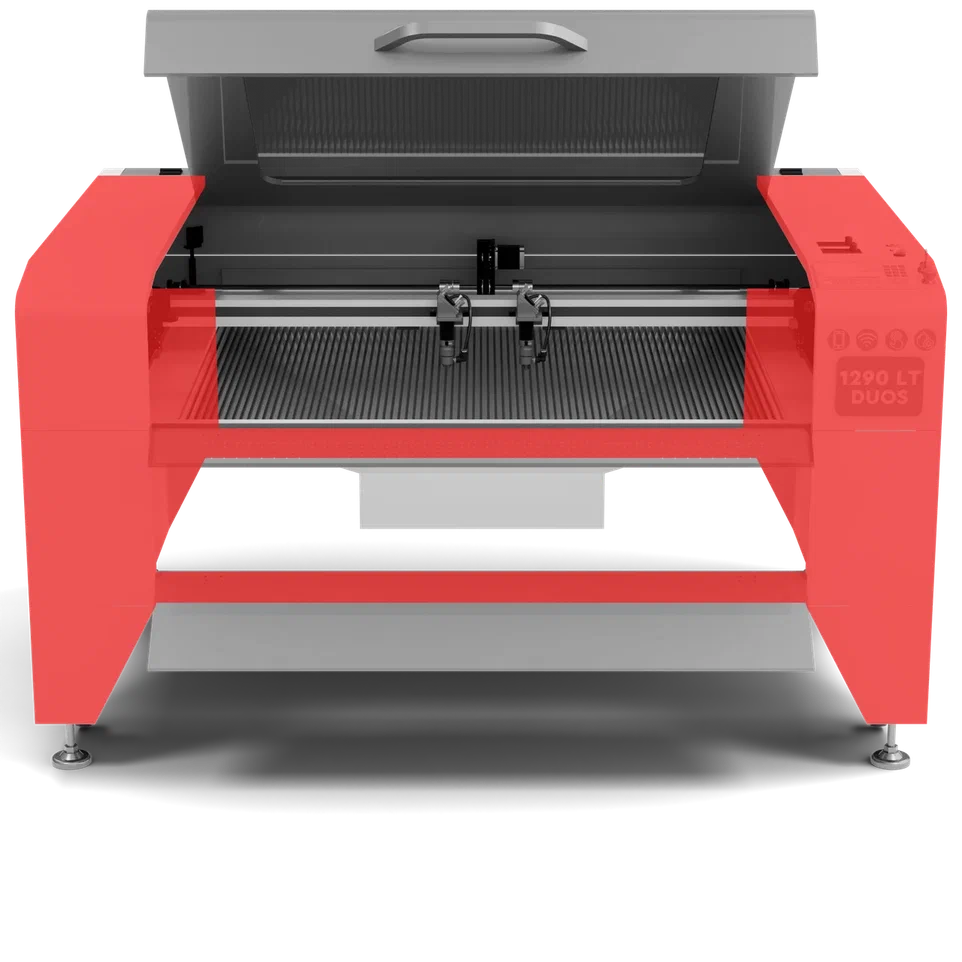

The frame structure makes Wattsan machines unique

The machine frame removes vibrations, especially during engraving, since the greatest moment of inertia is achieved during engraving. It is important to remember the accuracy of the machine.

The increased thickness of the body is designed to reduce vibrations arising during engraving.

On Wattsan machines, the body thickness is 2.7 mm or higher on machines such as 1610 and larger. The additional thickness of the frame body increases the service life of the machine and its problem-free operation.

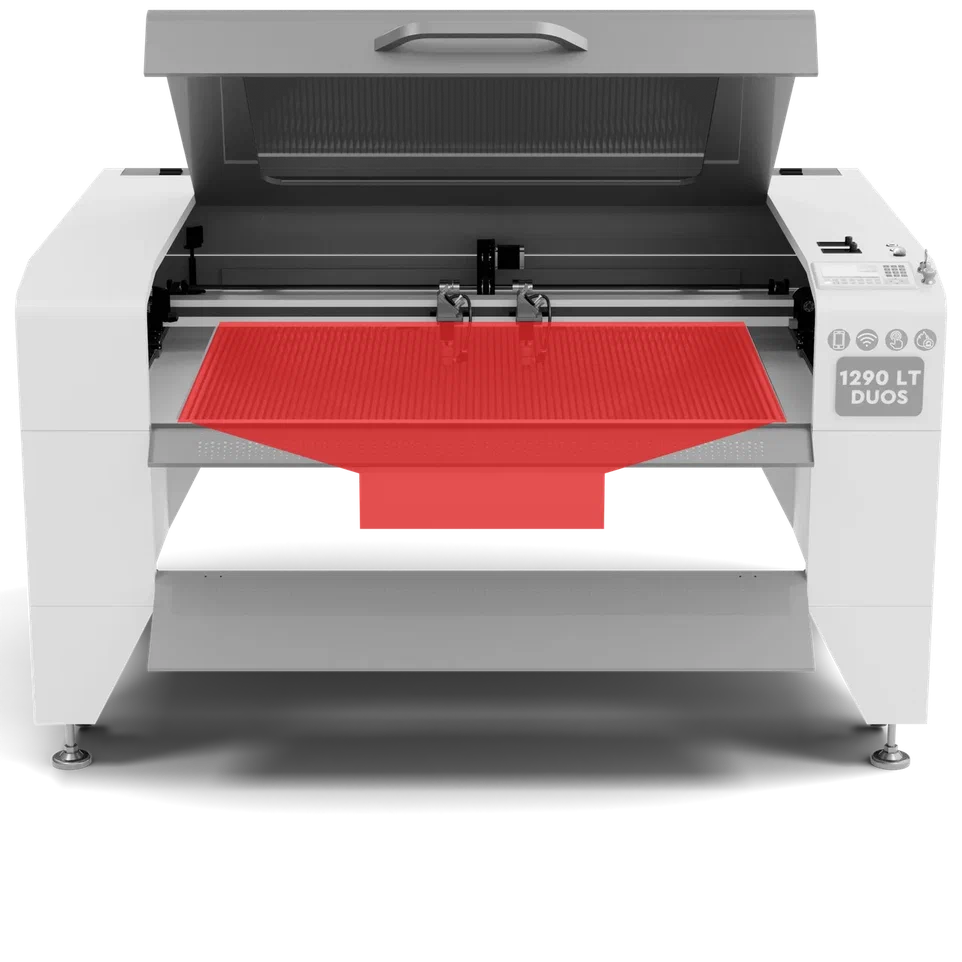

Trash collection compartment

The waste collection compartment not only protects the lifting mechanism from small particles but also adds additional rigidity to the structure, enhancing the overall durability of the machine. By collecting debris, it prevents potential damage to sensitive components and helps maintain smooth operation.

The compartment improves smoke extraction, ensuring better ventilation and a cleaner workspace, which ultimately leads to more efficient and safer operation. This thoughtful design enhances both the machine’s longevity and its performance.

Circuit for lifting table lowering and asynchronous motor

For heavy materials such as stone, the Wattsan LT series machines are equipped with a chain and asynchronous motor that can lift materials weighing up to 80 kg without slipping.

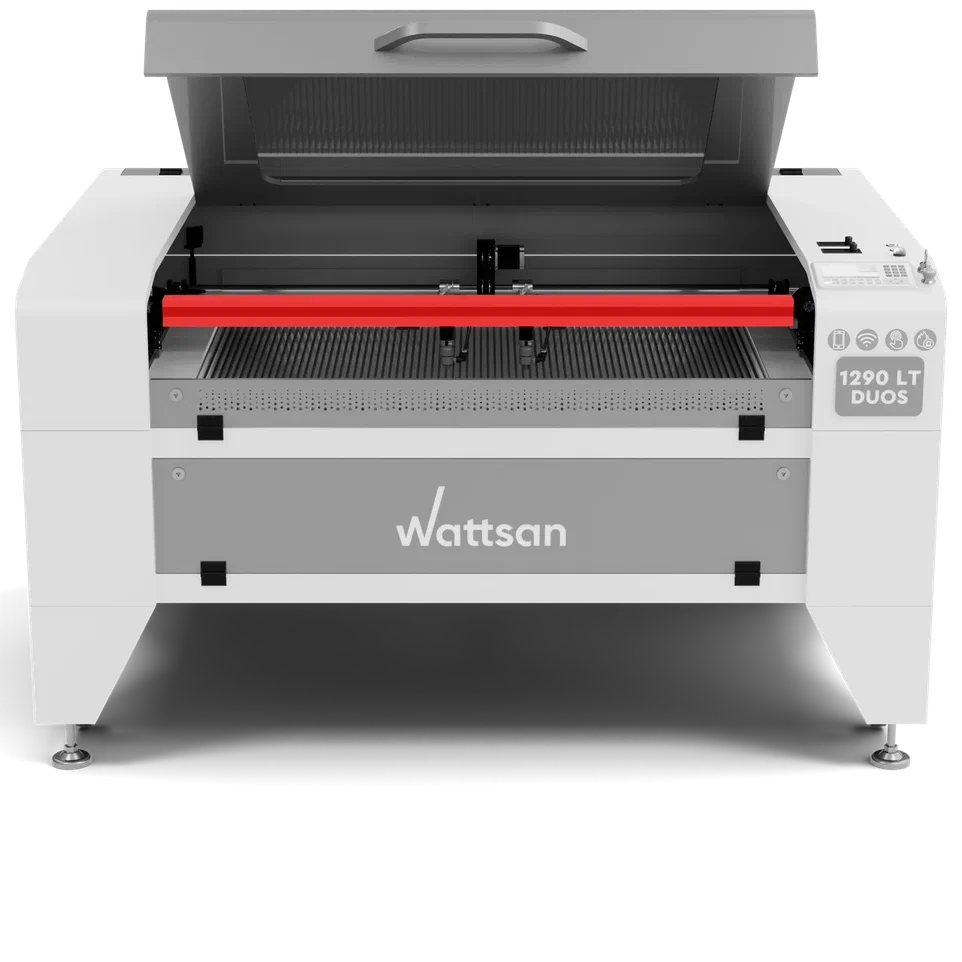

Reinforced Enclosed Motion System

All moving parts, including the gantry, are fully enclosed to block dust and ensure vibration-free operation. The robust portal houses the guide rail and bearing inside, with a protective belt for extra security. This design guarantees precise, reliable, and long-lasting performance.

Three-phase stepper motors

In the basic configuration they are stepper motors with the feedback. They have increased accuracy up to 0.03 mm due to the real-time position correction. Thanks to that, they prevent lost steps during fast or complex tasks and can provide reliable work under high loads.

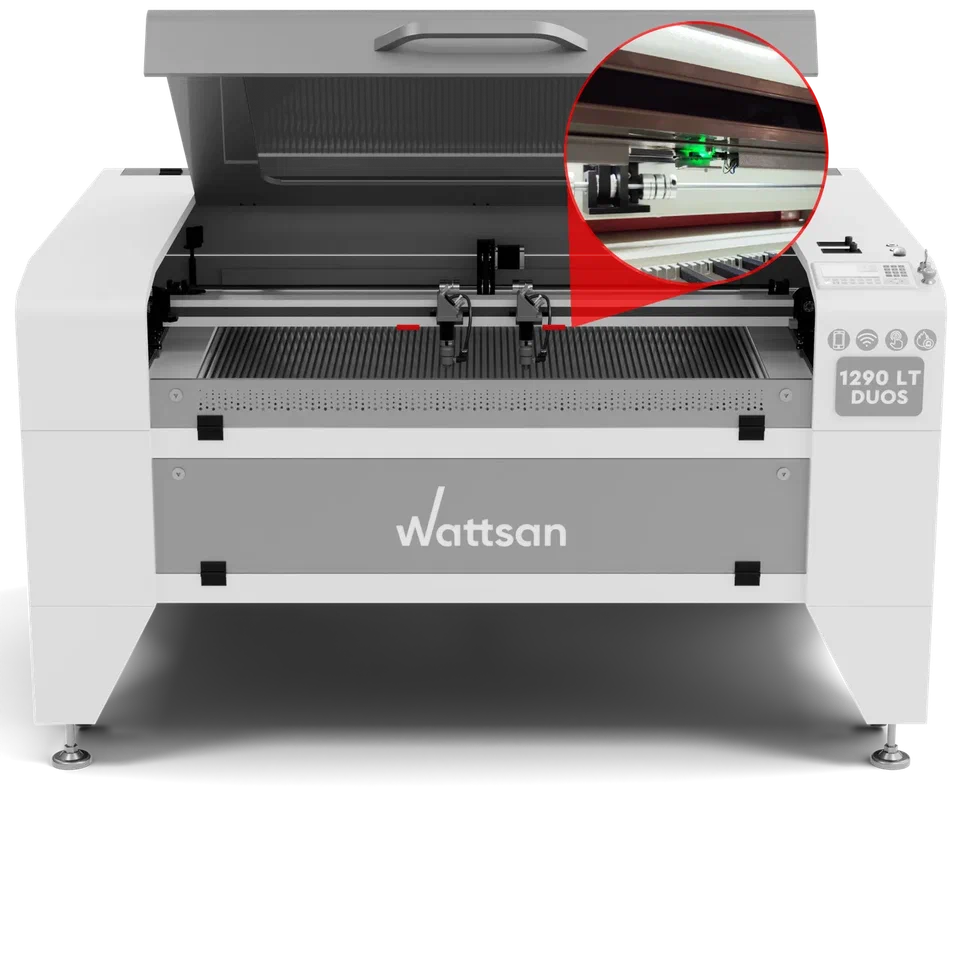

Wattsan FOX System – Fire Overwatch Expert

Wattsan FOX System is an exclusive, proprietary safety solution that instantly detects smoke and fire, triggering a loud, facility-wide alarm. Engineered for industrial environments, it ensures rapid response and maximum protection of your workshop, equipment, and personnel—capabilities unmatched by standard systems.

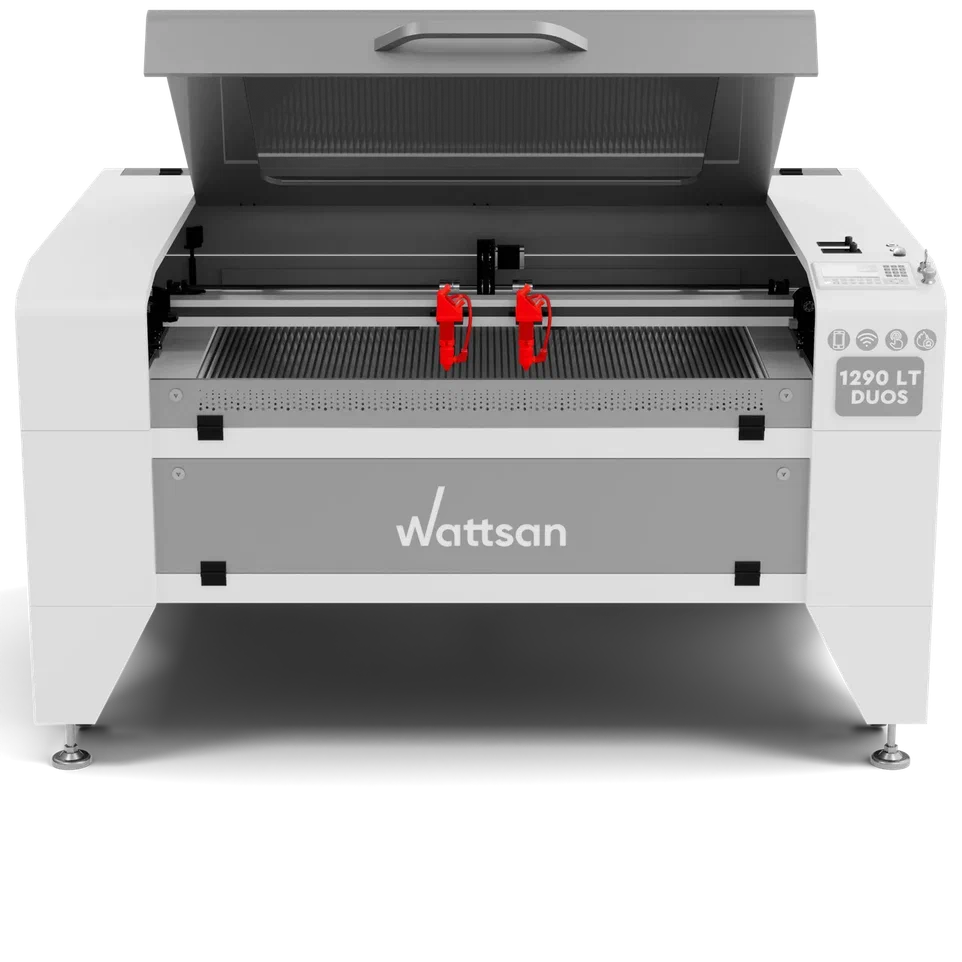

Two working heads

That is why the machine is called DUOS. The two heads work synchronously with a minimum distance of 130 mm from each other, which speeds up the production process of serial products in half.

Make a request

    Unmatched safety, only with Wattsan SAS technology

    Wattsan Safety Assurance System
    Enhanced Airflow System
    Stay ahead of fire with our Safety Assurance System (SAS). It includes Wattsan FOX (fire overwatch expert) that monitors everything in the working area and starts a loud signalization when detecting ignition. The new anodized laser head eliminates the chance of stray laser beams and protects from heat. Also, the lid is made out of tempered glass, and a special sealant is placed between the lid and body. All of that contains fire, smoke, and gases inside the machine. And an indicating lamp on the side will signal you from afar if something is wrong.
    Our enhanced Airflow System shields operators from smoke and laser radiation while boosting airflow, making the exhaust system 1.5× more efficient. The design keeps harmful emissions inside, maintaining a cleaner, safer workspace. Improved ventilation reduces heat and smoke buildup, ensures consistent conditions, minimizes downtime, and protects both personnel and equipment. This smart design maximizes safety, productivity, and reliability during long production cycles.

    Total Control and Workflow Visibility

    Real-Time Power Adjustment
    Status Indicator Light
    The potentiometer with display gives operators precise, real-time power control. Replacing the old analog version, this potentiometer enables power adjustment with an accuracy of 0.001 A. Perfect for delicate engraving or wood ablation, it ensures consistent results and safer, more accurate alignment, protecting lenses while keeping full control over every detail.
    Our light indicator makes it easy to monitor every machine at a glance. Operators instantly see finished or paused work, helping minimize idle time and boost productivity across large-scale operations.

    WATTSAN – getting stronger with every new customer!

    Twice as Fast Setup & Ergonomic Design

    Adjustment time reduced by 30%! With advanced mirror mounts, height-adjustable laser heads, beam combiner, and universal tube holders, machine calibration is faster than ever. Operators save time on alignment, adjustments, and tube replacement, increasing overall productivity and reducing downtime.

    The machine features new power on/off buttons for intuitive operation, a rounded body for a sleek and safe design, and a comfortable handle made of advanced material with an enlarged grip area, ensuring effortless handling and better control.

    More than 300 improvements have been made to the design of Wattsan machines

    wattsan-img

    Сonnector to nozzle

    Proper design prevents bursting, even at high pressures

    wattsan-img

    Location of belts

    Belts are positioned over the gantry for easy maintenance and to prevent heat during cutting

    wattsan-img

    Polyurethane air supply tubes

    Withstands up to 8 atmospheres of bursting pressure.

    wattsan-img

    Mechanical protection

    Protects the moving parts of the lift and lowering table from the ingress of small residues

    wattsan-img

    Chain for table lifting and lowering

    In combination with an asynchronous motor, the load on the working table is up to 80 kg, no misalignment of the table in the horizon.

    wattsan-img

    Belt reduction gear

    The combination of a three-phase stepper motor with a 4:1 belt reducer allows you to get high engraving quality up to 2500 DPI.

    wattsan-img

    Correct position of stepper motors

    The stepper motor is centered on the shaft on the Y-axis for even load distribution, which greatly increases its service life and accuracy in the production of small parts.

    Series comparison

    SERIES/
    Parameters

    Working area

    Weight

    Laser power

    ZnSe lens

    Focal length

    Lifting table

    Control system

    Power consumption

    Through table

    XY axis structure

    slide-image

    Wattsan 0503 Hobby-T

    Learn more

    500 x 300 mm

    49 kg

    55 W

    18 mm

    38 mm

    Manual

    Ruida RDC8445S

    640 W

    Yes. (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    0203 Micro

    Learn more

    200 х 300 mm

    40 kg

    40 W

    18 mm

    38 mm

    No

    M3

    350 W

    No

    Round guide/Roller

    slide-image

    0503

    Learn more

    500 х 300 mm

    98 kg

    60W

    18 mm

    38 mm

    Manual

    Ruida RDC8445S

    640 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    6040

    Learn more

    600 х 400 mm

    110 kg

    80-90 W

    18 mm

    38 mm

    Manual

    Ruida RDC8445S

    740 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    6090 LT

    Learn more

    600 x 900 mm

    350 kg

    80-90 W

    20 mm

    50 mm

    Yes

    Ruida RDC8445S

    1550 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    6090 ST

    Learn more

    600 х 900 mm

    200 kg

    80-90 W

    20 mm

    50 mm

    No

    Ruida RDC8445S

    1500 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    1290 LT

    Learn more

    1200 х 900 mm

    400 kg

    100-120 W

    20 mm

    50 mm

    Yes

    Ruida RDC8445S

    2050 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    1290 ST

    Learn more

    1200 х 900 mm

    400 kg

    100-120 W

    20 mm

    50 mm

    No

    Ruida RDC8445S

    2000 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    1610 LT

    Learn more

    1600 х 1000 mm

    470 kg

    100-120 W

    20 mm

    50 mm

    Yes

    Ruida RDC8445S

    2050 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    1610 ST

    Learn more

    1600 х 1000 mm

    400 kg

    100-120 W

    20 mm

    50 mm

    No

    Ruida RDC8445S

    2000 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    1290 DUOS LT

    Learn more

    1200 х 900 mm

    500 kg

    100-120 W

    20 mm

    50 mm

    Yes

    Ruida RDC8445S

    2050 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    1290 DUOS ST

    Learn more

    1200 х 900 mm

    500 kg

    100-120 W

    20 mm

    50 mm

    No

    Ruida RDC8445S

    2000 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    1610 DUOS LT

    Learn more

    1600 x 1000 mm

    488 kg

    100-120 W

    20 mm

    50 mm

    Yes

    Ruida RDC8445S

    3400 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    1610 DUOS ST

    Learn more

    1600 х 1000 mm

    488 kg

    100-120 W

    20 mm

    50 mm

    No

    Ruida RDC8445S

    3350 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    1610 CAM CONVEYER

    Learn more

    1600 x 1000 mm

    770 kg

    100-120 W

    20 mm

    50 mm

    No

    Ruida RDC8445S

    3500 W

    Yes (Y-axis)

    Roller metal, metal rollers

    slide-image

    1610 DUOS CONVEYER

    Learn more

    1600 x 1000 mm

    708 kg

    100-120 W

    20 mm

    50 mm

    No

    Ruida RDC8445S

    3500 W

    Yes (Y-axis)

    Roller metal, metal rollers

    slide-image

    NC-C 1612

    Learn more

    1600 x 1200 mm

    680 kg

    130-160 W

    20 mm

    50 mm *options

    Yes

    Ruida RDC8445S

    3500 W

    Yes (Y-axis)

    Roller metal, metal rollers

    slide-image

    2030 FLAT BED

    Learn more

    2000 x 3000 mm

    800 kg

    100-120 W

    20 mm

    50 mm

    No

    Ruida RDC8445S

    2800 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    6090 ST

    Learn more

    600 х 900 mm

    256 kg

    80-90 W

    20 mm

    50 mm

    No

    Ruida RDC8445

    1500 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    6090 LT

    Learn more

    600 х 900 mm

    256 kg

    80-90 W

    20 mm

    50 mm

    Yes

    Ruida RDC8445

    1500 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    1290 ST

    Learn more

    1200 х 900 mm

    340 kg

    100-120 W

    20 mm

    50 mm

    No

    Ruida RDC8445

    1500 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    1290 LT

    Learn more

    1200 х 900 mm

    362 kg

    100-120 W

    20 mm

    50 mm

    Yes

    Ruida RDC8445

    1500 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    1610 ST

    Learn more

    1600 х 1000 mm

    400 kg

    100-120 W

    20 mm

    50 mm

    No

    Ruida RDC8445

    1500 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    1610 LT

    Learn more

    1600 х 1000 mm

    450 kg

    100-120 W

    20 mm

    50 mm

    Yes

    Ruida RDC8445

    1500 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    6090 PRO

    Learn more

    900 x 600 mm

    362 kg

    100-120 W

    20 mm

    50 mm

    Yes

    Ruida RDC8445

    2000 W

    Yes. (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    1290 PRO

    Learn more

    1200 х 900 mm

    -

    100-120 W

    20 mm

    20 mm

    Yes

    Ruida RDC8445

    2000 W

    Yes. (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    1610 PRO

    Learn more

    1600 х 1000 mm

    -

    100-120 W

    20 mm

    50 mm

    Yes

    Ruida RDC8445

    2000 W

    Yes. (Y-axis)

    Linear guide AMT PMI MSB 15S

    ... ...
    Learn more Learn more
    Working area
    Weight
    Laser power
    ZnSe lens
    Focal length
    Lifting table
    Control system
    Power consumption
    Through table
    XY axis structure

    We ensure the smooth running of Wattsan machines

    Startup & Training
    Service & Support
    Wattsan service engineers help clients and all partners around the world via online or offline training. You can get info on maintenance, basic machine operations, tips for processing various materials, etc. We launch and train more than 100 clients monthly.
    Our service team operates across the world, and Wattsan machines are presented even in Antarctica. We offer an offline and online support system for clients, and it will be available for you throughout the whole machine’s lifespan.
    All of our equipment comes with a warranty and a guaranteed return policy.
    Startup & Training Startup & Training
    Service & Support Service & Support

    Materials

    The machine is suitable for materials

    img Acrylic
    img Bamboo
    img Ceramic tile
    img Jade
    img Fabric
    img Foam rubber
    img Granite
    img Leather
    img Mdf
    img Paronite
    img Plastic
    img Plywood
    img Resin
    img Rubber
    img Stone
    img Wood
    img Wool
    img Chipboard

    0/0

    Package list

    box-image
    1pc

    Power cable

    box-image
    1pc

    USB cable

    box-image
    1pc

    Ethernet cable

    box-image
    1pc

    Hex wrench set

    box-image
    1pc

    Silicone sealent

    box-image
    1pc

    Masking tape

    box-image
    1pc

    Hose barb

    box-image
    1pc

    Water pump

    box-image
    1pc

    Manual

    box-image
    1pc

    Air compressor

    box-image
    4pc

    Silicon tube set

    box-image
    1pc

    USB flash drive

    Technical
    characteristics

    Dimensions
    Net weight
    244 kg
    Packing size
    1900 x 1660 x 840 mm
    Packing weight
    393 kg
    Optics
    Laser power
    100-120 W
    Mirror Diameter
    25 mm
    ZnSe lens
    ZnSe D20 f50
    Laser tube lifetime
    10000 h
    Laser tube
    SPT, Reci, Lasea
    Mechanics
    Working surface
    Blade table
    Cutting speed
    0-500 mm/s
    Engraving Speed
    0-500 mm/s
    Positioning precision
    0,03 mm
    Laser cooling
    Water
    Power consumption
    2000 W
    Through table
    Yes. (Y-axis)
    Structure of the axis Y
    Linear guide AMT PMI MSB 15S
    Structure of the axis X
    Linear guide AMT PMI MSB 15S
    Power supply
    220 V
    Control system
    Ruida RDC8445S
    Wattsan Safety Assurance System (SAS)
    Yes
    Supported formats
    AI, DXF, PLT, PDF, BMP,
GIF, JPEG, PNG
    Connectivity
    LAN, USB cable, USB flash drive
    Software
    RDL (LaserWork 8)
    File transfer
    Wifi, Lan, USB
    Control system
    RuiDa
    Laser tube
    RECI, LASEA, SPT
    CorelDraw, Photoshop, AutoCAD
    BMP, GIF, JPG, TIFF, PLT, CDR, DXF, AI, SVG
    Make a request

      Logistics
      We will deliver the equipment under the most convenient conditions for you

      If the machine is not in stock when you purchase it, you must first wait for the assembly process to be completed. It can take at least three weeks (and up to six months). The delivery time itself ranges from 0 days to a month.

      We may deliver on various terms. The most popular ones are EXW, FOB, CIF, and DDP. You can have a machine delivered to your workplace, the destination port, or you can organise the delivery yourself by contacting logistics providers.

      EXW is the most basic shipment type, FOB and CIF may be considered the golden mean, and DDP is the most convenient.

      Technical
      characteristics

      Dimensions
      Net weight
      244 kg
      Packing size
      1900 x 1660 x 840 mm
      Packing weight
      393 kg
      Optics
      Laser power
      100-120 W
      Mirror Diameter
      25 mm
      ZnSe lens
      ZnSe D20 f50
      Laser tube lifetime
      10000 h
      Laser tube
      SPT, Reci, Lasea
      Mechanics
      Working surface
      Blade table
      Cutting speed
      0-500 mm/s
      Engraving Speed
      0-500 mm/s
      Positioning precision
      0,03 mm
      Laser cooling
      Water
      Power consumption
      2000 W
      Through table
      Yes. (Y-axis)
      Structure of the axis Y
      Linear guide AMT PMI MSB 15S
      Structure of the axis X
      Linear guide AMT PMI MSB 15S
      Power supply
      220 V
      Control system
      Ruida RDC8445S
      Wattsan Safety Assurance System (SAS)
      Yes
      Supported formats
      AI, DXF, PLT, PDF, BMP,
GIF, JPEG, PNG
      Connectivity
      LAN, USB cable, USB flash drive
      Software
      RDL (LaserWork 8)
      File transfer
      Wifi, Lan, USB
      Control system
      RuiDa
      Laser tube
      RECI, LASEA, SPT
      CorelDraw, Photoshop, AutoCAD
      BMP, GIF, JPG, TIFF, PLT, CDR, DXF, AI, SVG

      Other products

      alt

      Wattsan 1610 ST
      alt

      Wattsan 1290 ST
      alt

      Wattsan 1610 DUOS ST
      alt

      Wattsan 1290 DUOS ST
      alt

      Wattsan 1610 LT
      alt

      Wattsan 1290 LT

      Contact

      Make a request

        Service & Support
        Leave your contact details and a laser equipment specialist will call you back and help you choose a machine

          [cf7ic "toggle"]
          BECOME A PARTNER

            Preffered means of contact:

            * required fields
            GET IN TOUCH
            Submit your details, and our experts will connect with you soon.

              Preffered means of contact:

              Consent Preferences
              We are the leader of the CNC machine industry.
              © 2003-2026 Jinan Wattsan Technology limited
