Servo CNC Press Brake Machines SB 6020

  • Motor power
  • Backgauge movement
  • Feeding depth
  • Punch movement
  • Machine size (LxWxH)
  • Weight
  • 18*2 kW
  • 500 mm
  • 350 mm
  • 200 mm
  • 2500 x 1750 x 2600 mm
  • 5500 kg
All characteristics

Whatsapp
Get a price
wattsan-img
wattsan-img
wattsan-img
wattsan-img
wattsan-img
wattsan-img
wattsan-img
wattsan-img
wattsan-img

Servo Press Brakes Wattsan SB 6020

Wattsan S-Bend Series are the most precise and ecological equipment among all of the press brakes: it uses electricity for movement and bending and consumes less energy than a hydraulic one.
The servo motors are responsible for the ram’s movement, allowing for the maximum level of precision. They are quiet and require almost no maintenance.

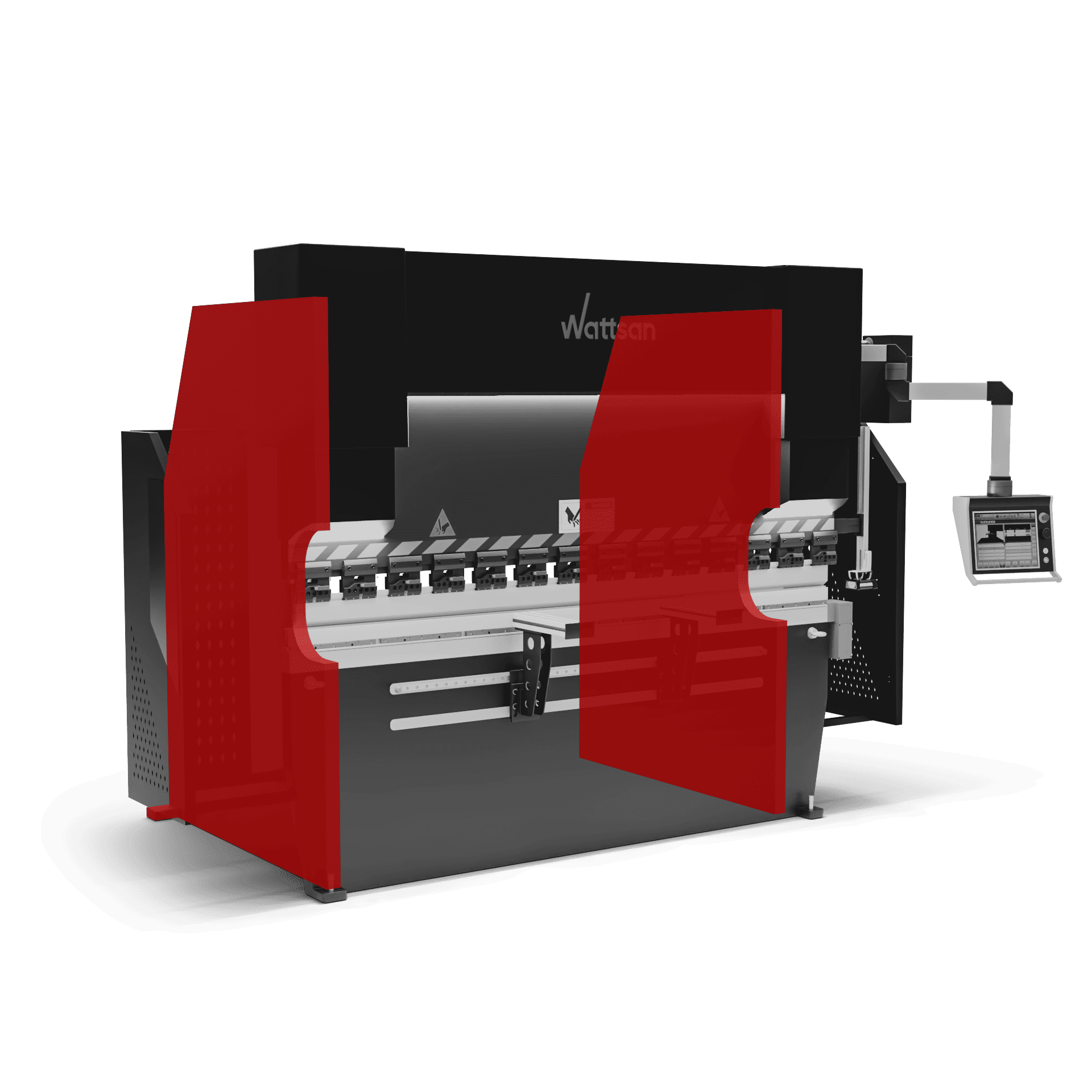

The C-shaped frame

The monobloc C-shaped frame design makes it possible to perform precise operations 24/7 for 10-15 years of operation. This design has a number of advantages: More space for mounting large and heavy tools on the side; the ability to extract complex, angular parts from the side; the possibility of using several machines in pairs for bending very long parts.

Мounting system

Thanks to the Amada-Promecam type bending tool mounting system and the adjusted coaxiality of the machine, any set of sections can be mounted on Wattsan machines without centering.

Matrices of the Amada-Promecam system have a base of 60 mm and are installed on the machine table through various types of adapters. In this way, 1V, 2V and 4V strand matrices can be fixed.

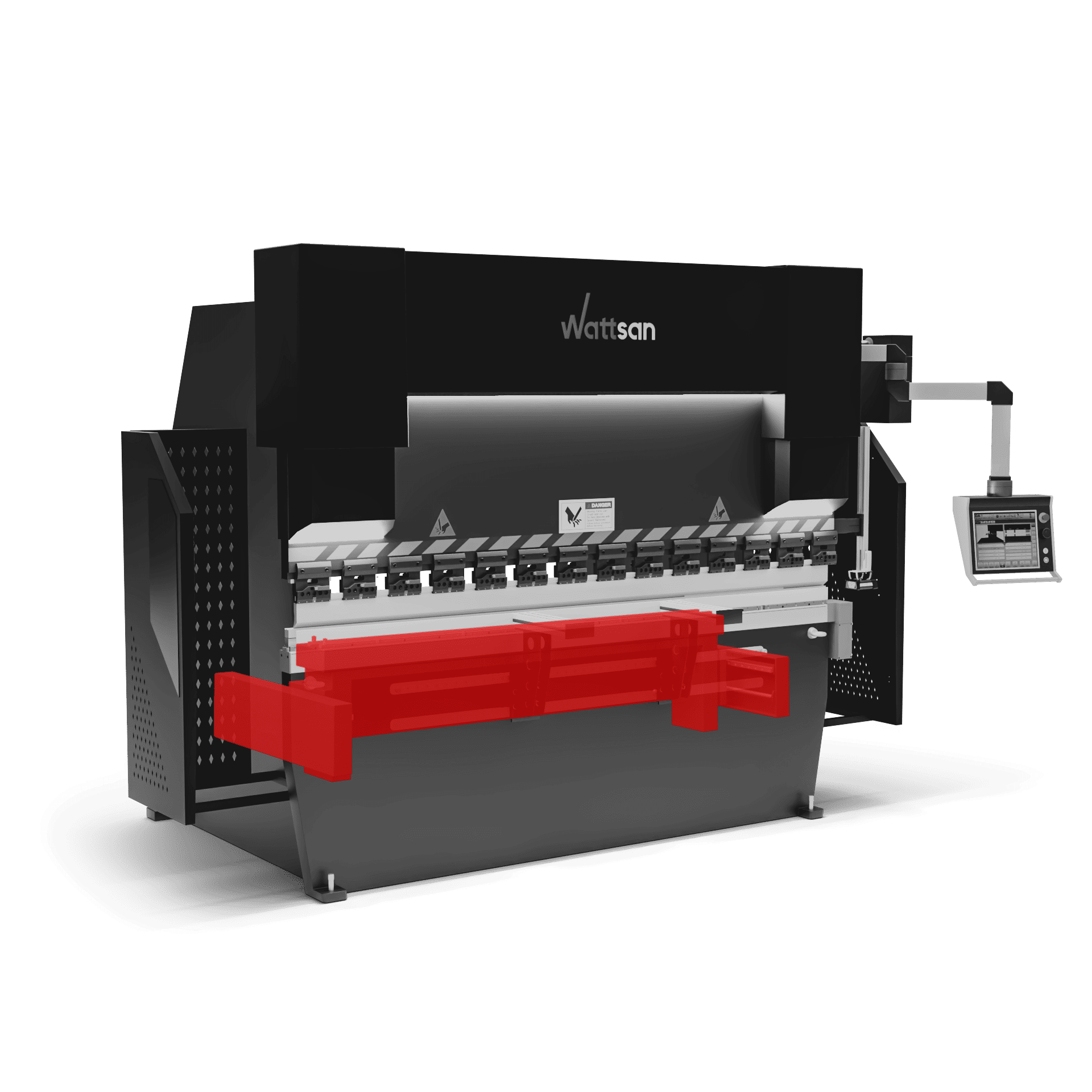

Range of bend configurations

Axes number configuration:

The amount of flexibility is the main difference between the number of axes a machine has. The more there is, the more complex jobs a model can accomplish.
There are two back gauges which can be connected (axes Z and R are united) or be independent (X1 and X2, R1 and R2, for each gauge), and this affects the intricacy of the bends you may have.

4+1: Simple bending for general applications
6+1: Back gauges are adjustable for more production goals
8+1: Maximum versatility

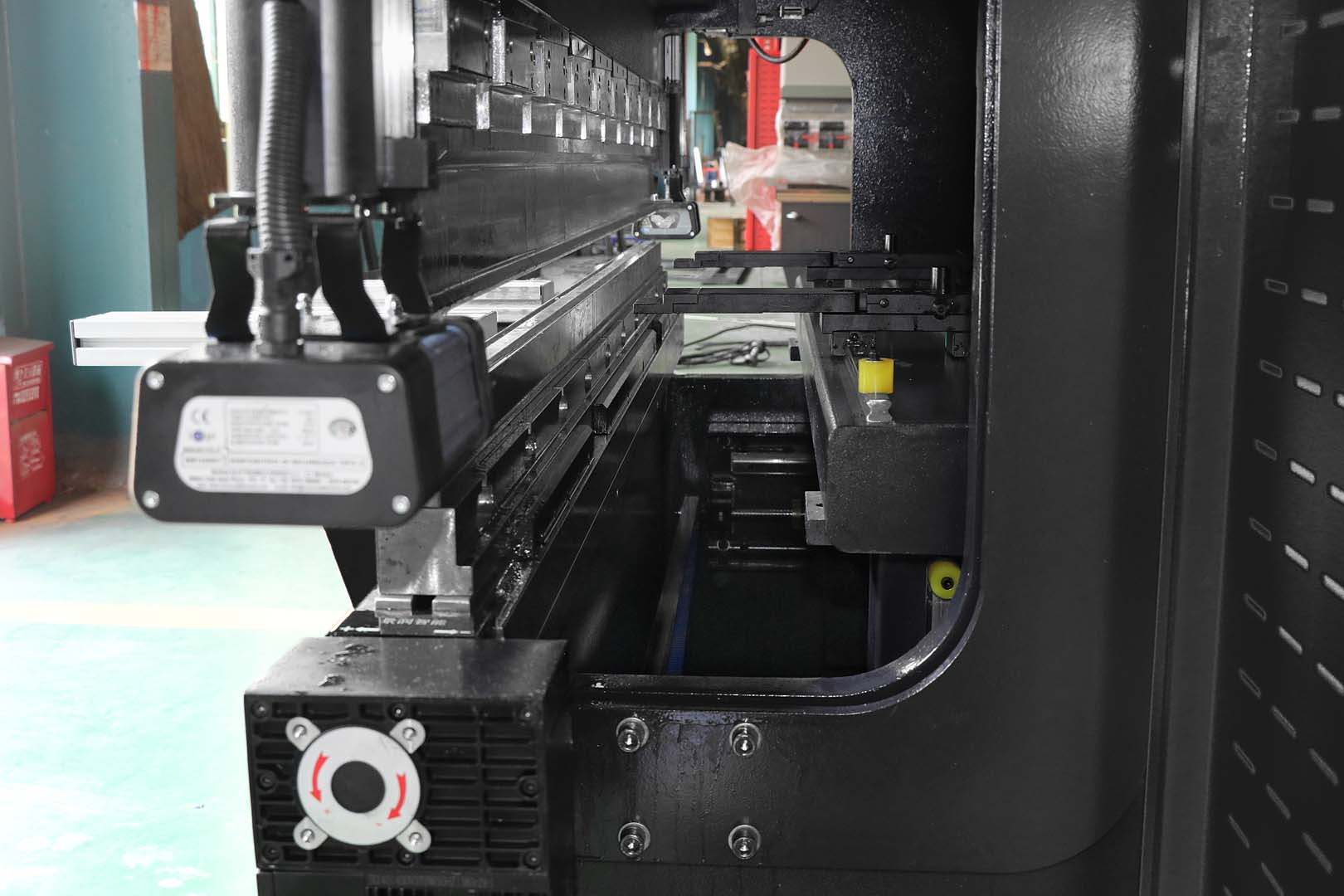

Back gauges

An important condition for achieving a perfect bend is the stability of the back gauge. Wattsan back gauges move along linear guides with servo motors, ensuring perfect running smoothness while maintaining maximum dynamics.

The automated Z-axis movement system eliminates manual movement of the back gauges when changing operations. This speeds up the production process and saves operator time.

Front support calipers

To simplify the supply of material to the bending area, the machine has front support for the sheet on linear guides. The supporting calipers ensure the stable position of the sheet at every stage of bending.

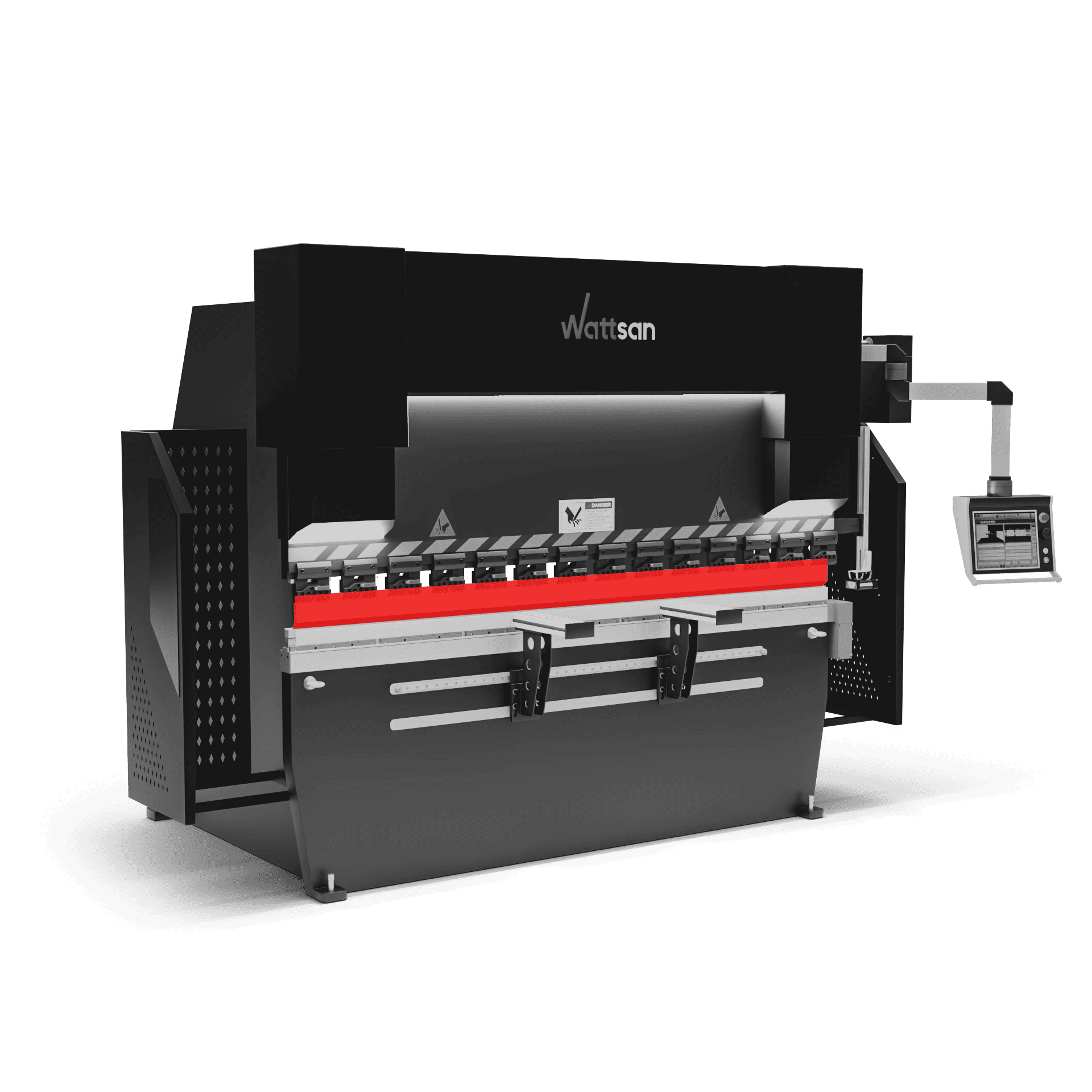

Four-sided matrix of the machine

Possibility of using segmented tools and quick-release holders. Depending on the required length of the bend, the four-sided matrix of the machine can be solid or segmented. Modular assembly of various types of tools expands the range of your options. A set of short dies is capable of processing the workpiece at different angles in several places at the same time in one bend, which optimizes the production process.

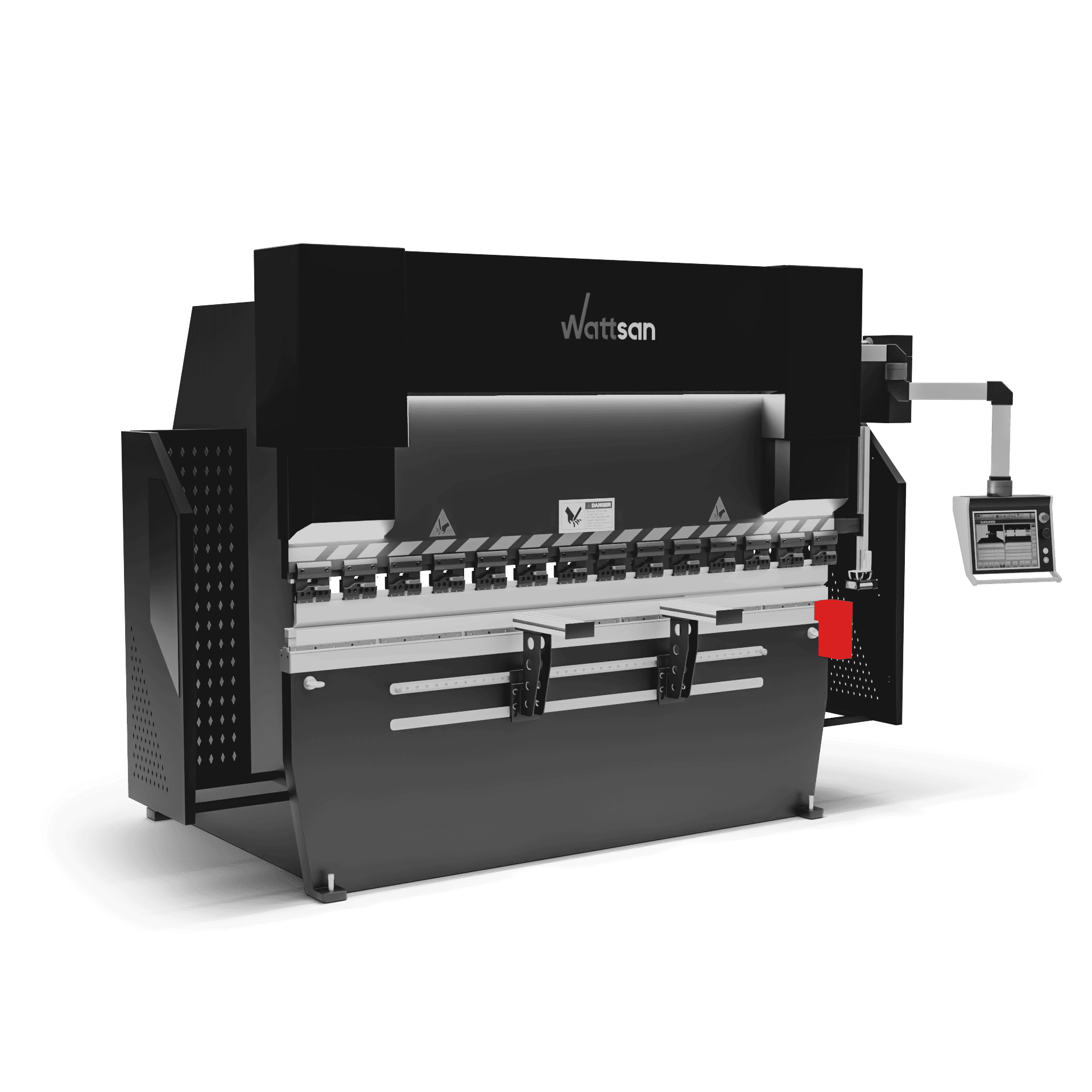

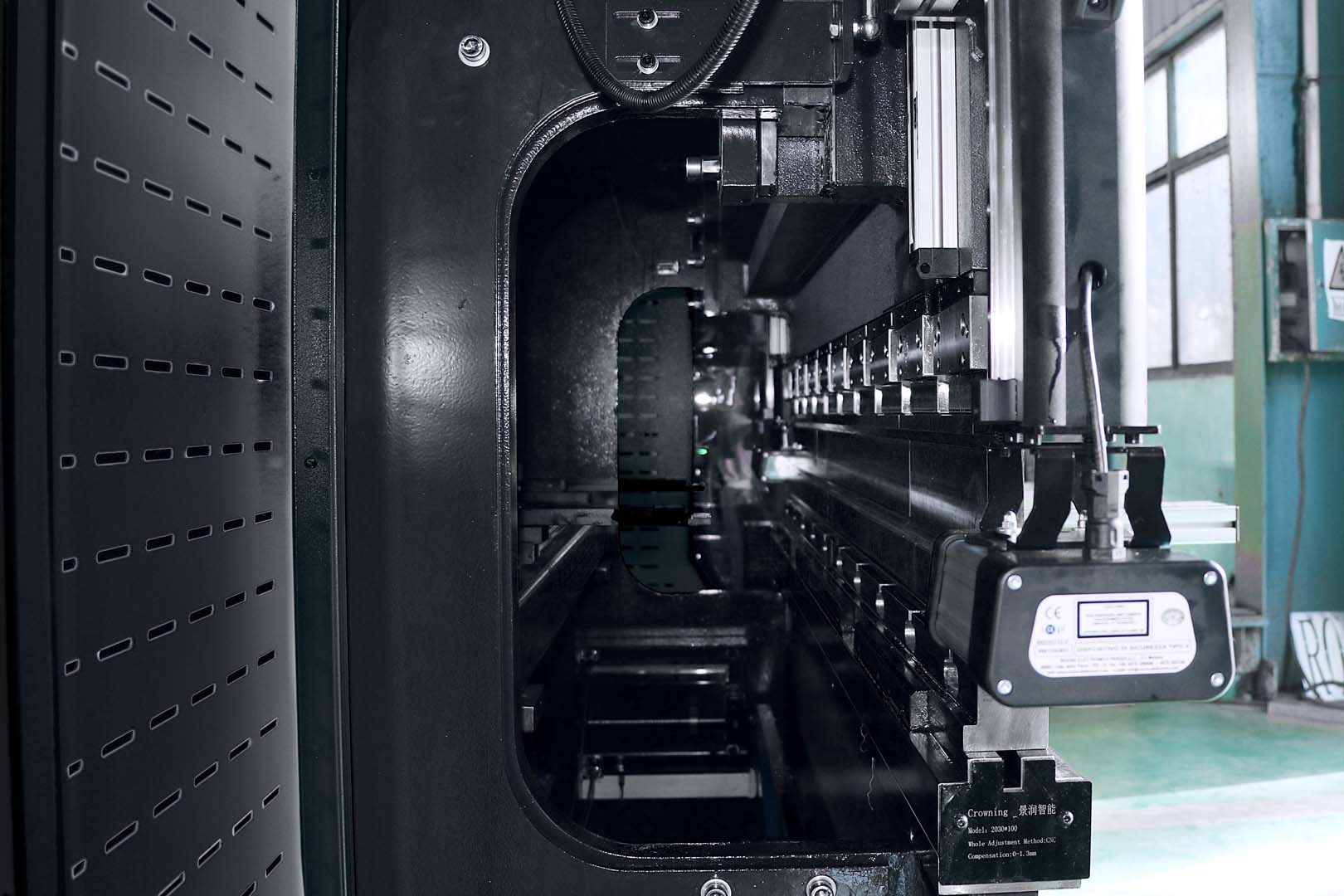

Motorized deflection compensation system

The desktop deflection compensation system is used to ensure the same depth of punch entry into the die along the entire bending length, which ensures the fulfillment of the specified bending parameters.

Deflection compensation avoids the effect of “reciprocating” and ensures perfect bend repeatability along the entire length of the workpiece, guaranteeing high quality of the final product. Wattsan M series press brakes feature the latest generation motorized compensation system to simplify machine maintenance.
It is irreplaceable at the enterprises with serial production in the 24/7 mode.

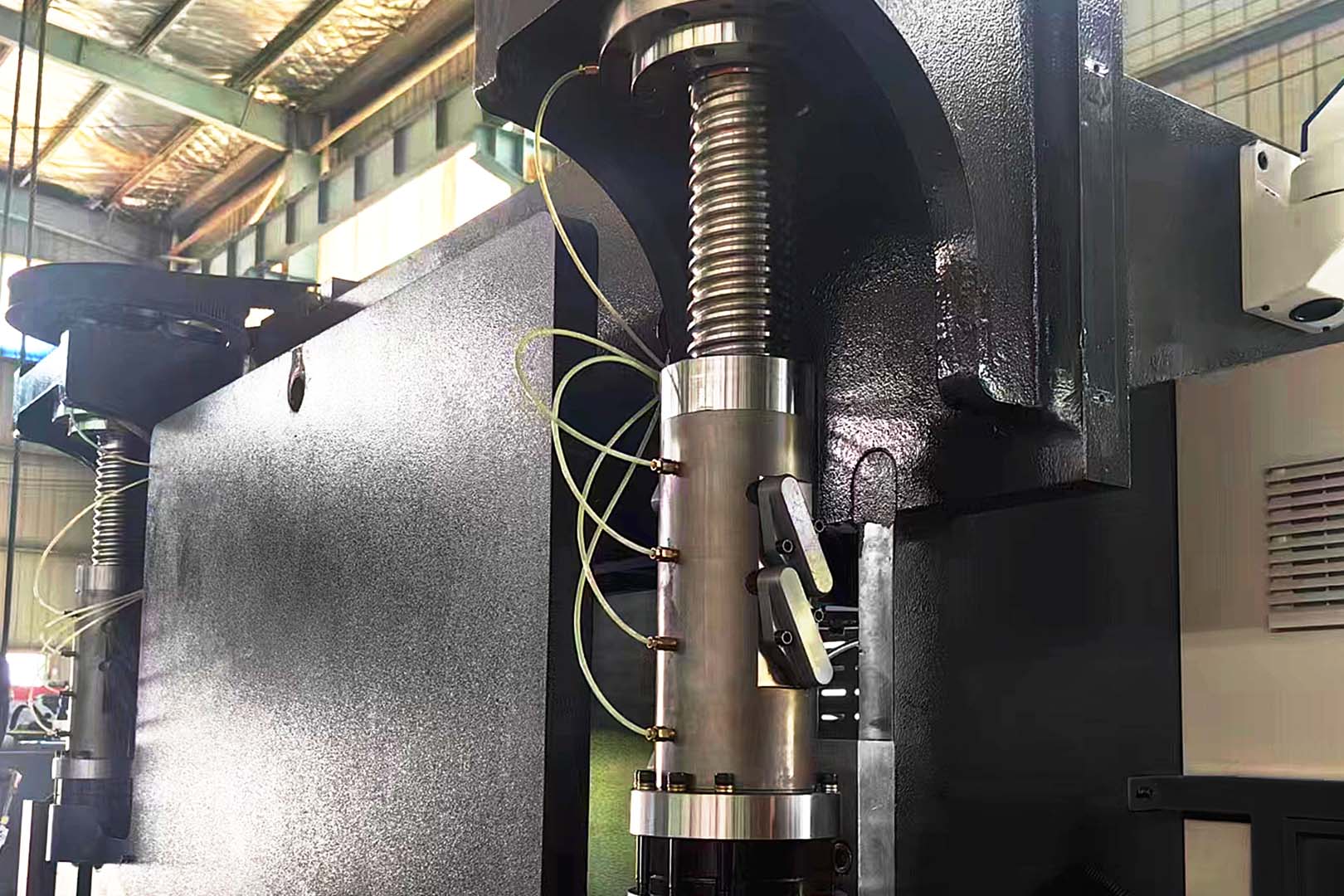

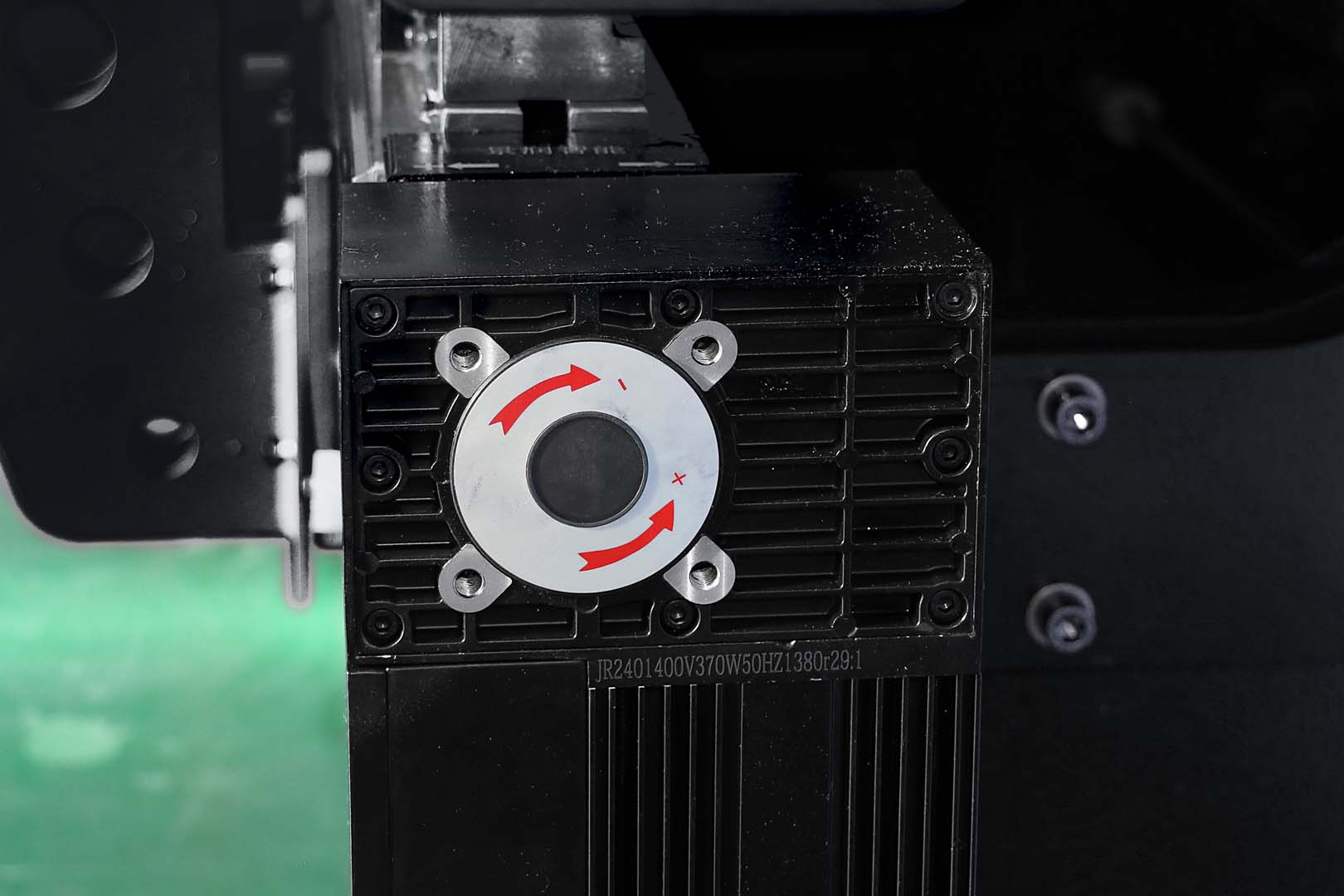

Wattsan S-Bend Series use servo motors to bend precisely

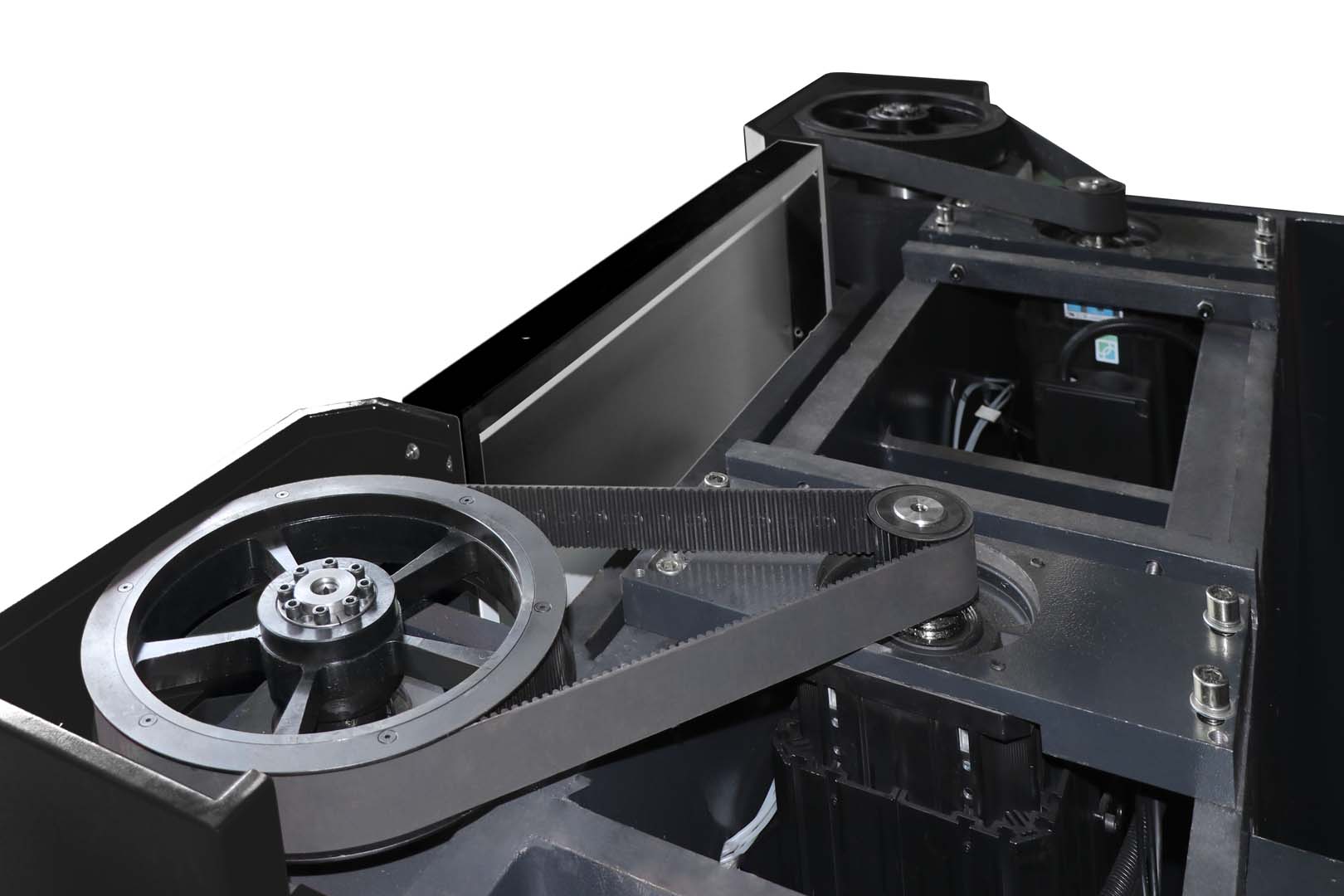

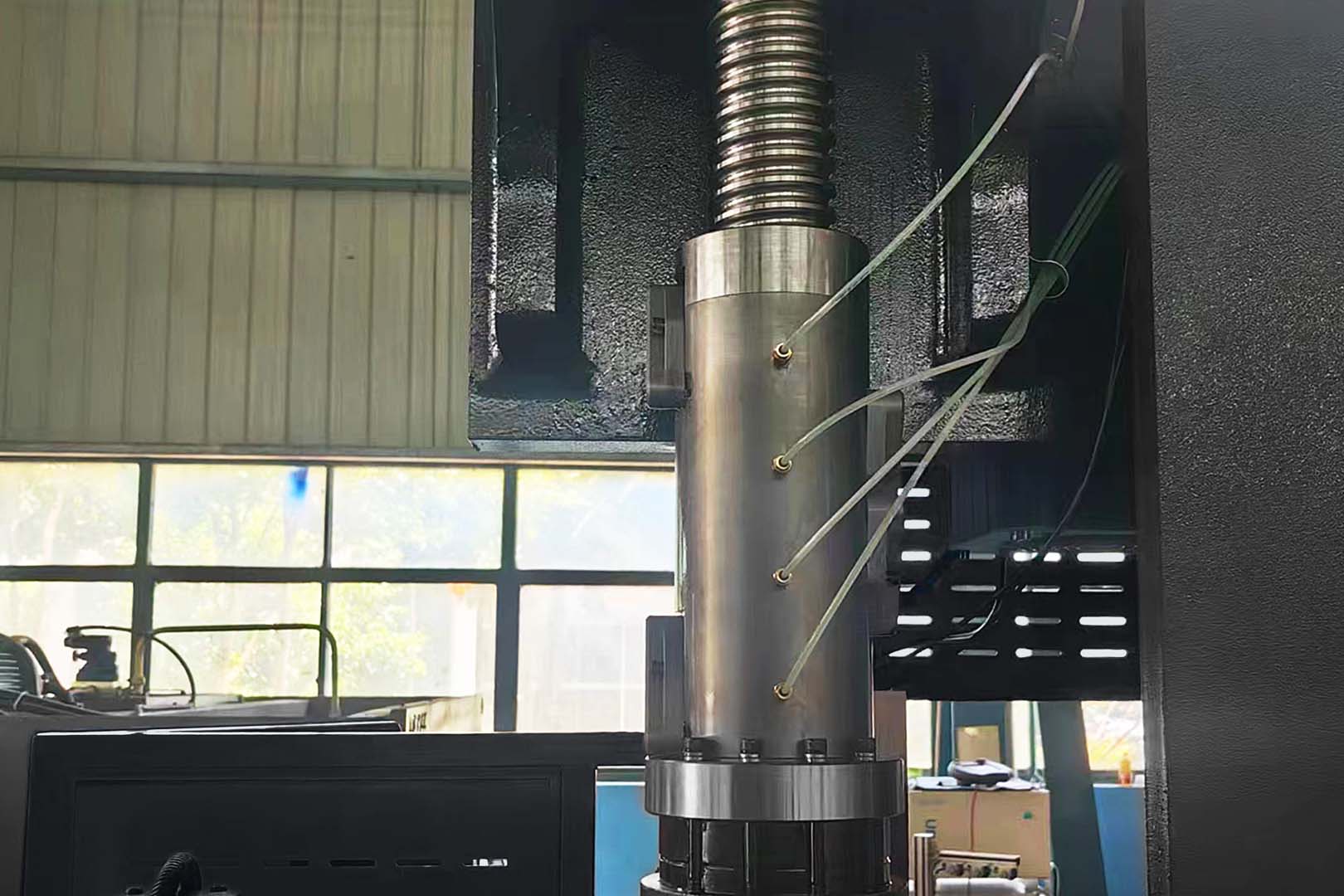

Servo motors apply pressure through synchronous toothed belts and ball screw to perform the up and down movement, resulting in the high-speed operations and accurate bending force needed for specific materials and thicknesses.

Compared to standard electro-hydraulic press brakes, these models save more energy.

wattsan-img
wattsan-img
wattsan-img
wattsan-img
wattsan-img
wattsan-img
wattsan-img
wattsan-img
wattsan-img
Make a request

    Additional options for SB 6020

    wattsan-img

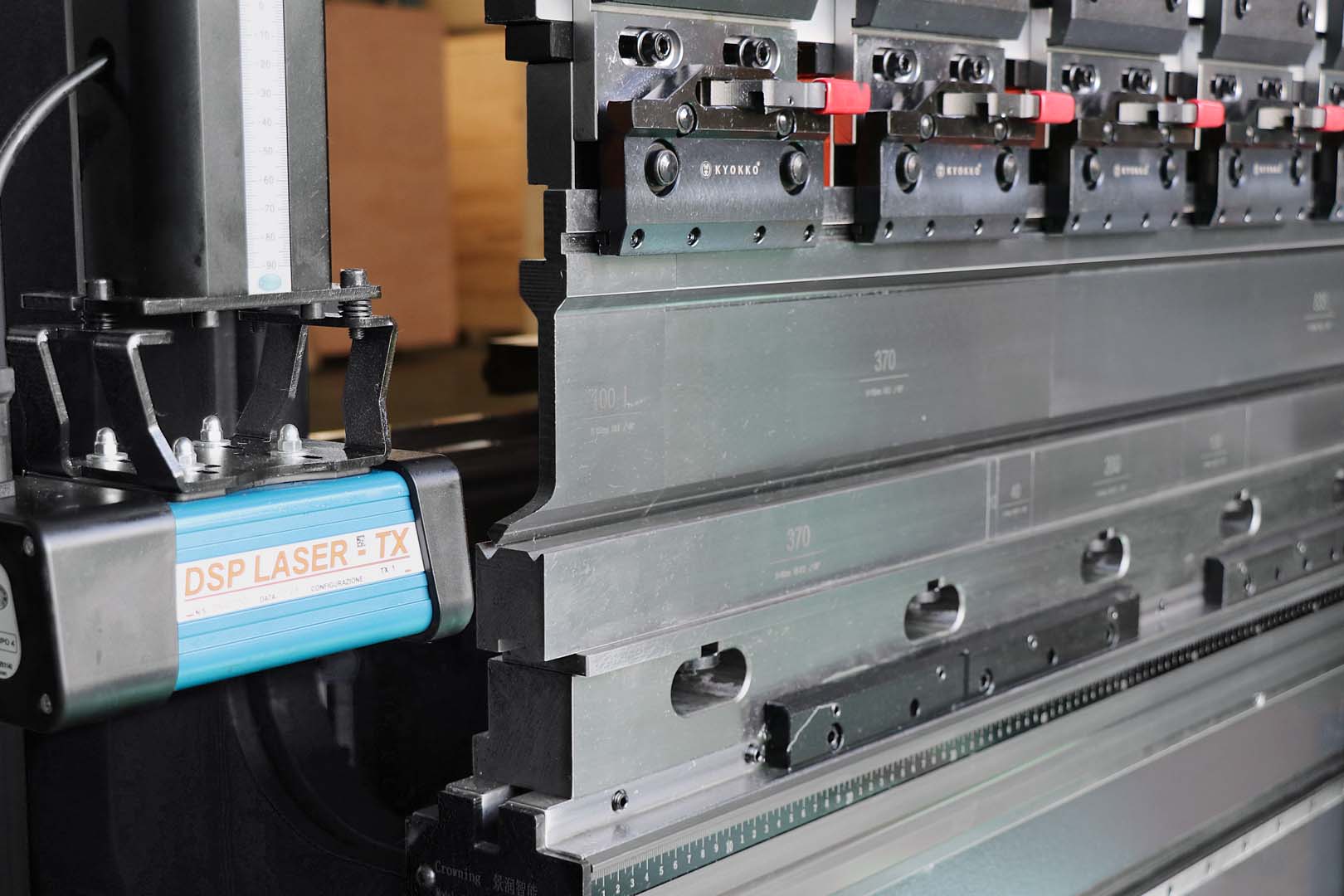

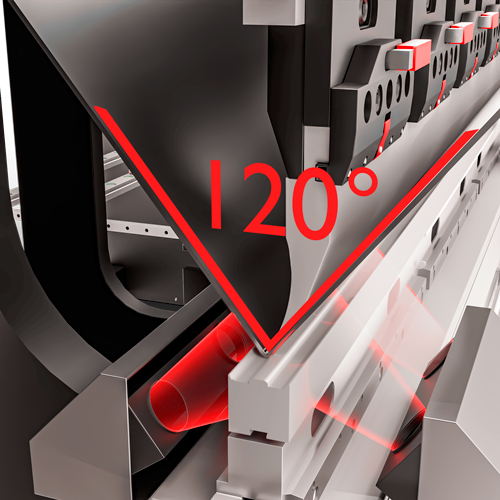

    Automatic Laser bending angle measurement system DATAM (German brand)

    It helps to correct possible mistakes and make final products precise.

    wattsan-img

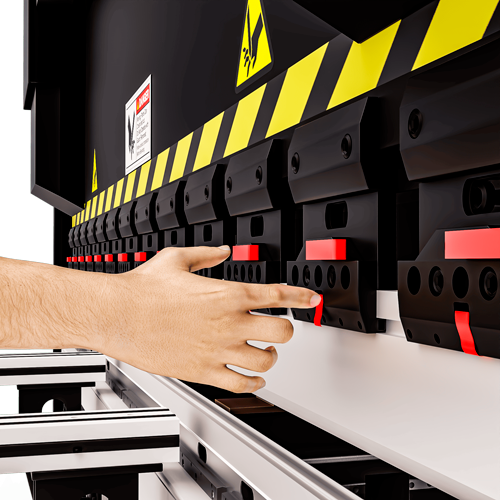

    Double-sided quick release clamping

    It makes installation of the upper tools way easier, as well as their removal.

    wattsan-img

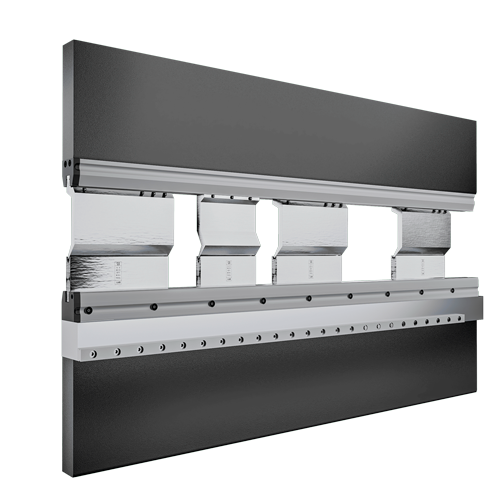

    Hydraulic Clamping and Hydraulic Crowning WILA (Netherlands)

    These functions can decrease the installation time by about 70%, minimize the influence of the sliding block deformation on the quality of the workpiece, and ensure the good straightness and bending angle.

    wattsan-img

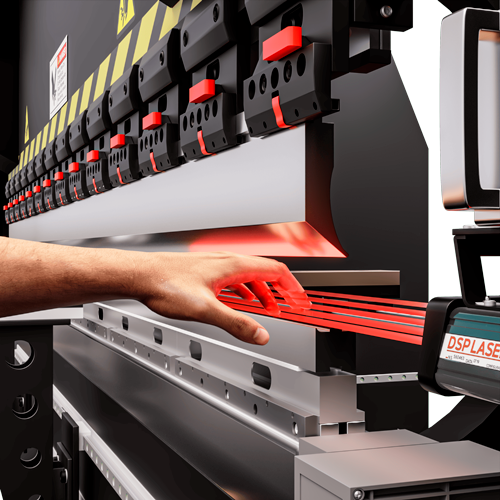

    Laser safety protection

    It protects the press brake operator from the danger of crushing between the moving and fixed part of the machine.

    wattsan-img

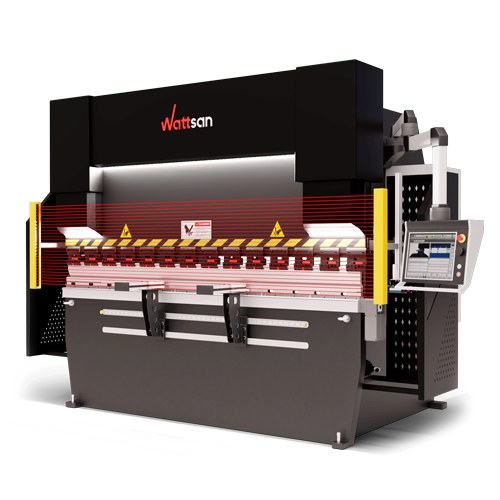

    Safety light curtain

    If someone interferes with the working machine, it stops.

    wattsan-img

    Tool cabinet

    It has three layers of shelfs: three for punches and three for dies.

    ESA and Delem Controllers

    ESA Control System
    Delem Control System
    If you are looking for a user-friendly controller that is able to work with a larger amount of axes, then we recommend ESA. It has a touch screen and is ideal for manufacturing process automation.
    ESA, an Italian business founded in 1962, specializes in CNC systems. Programming is accessible in both 2D and 3D forms, including bending sequence auto-counting and collusion prevention.
    If you are looking for the high-quality bending of the complex shapes, then we recommend using Delem. This system has a wide functional range, allowing flexibility in production.
    Delem is Netherland’s company, established in 1978, specializes in creating press brake controllers. 2D and 3D formats of programming are available, as well as bending sequence auto-counting and collusion preventing.
    wattsan-img wattsan-img
    wattsan-img wattsan-img

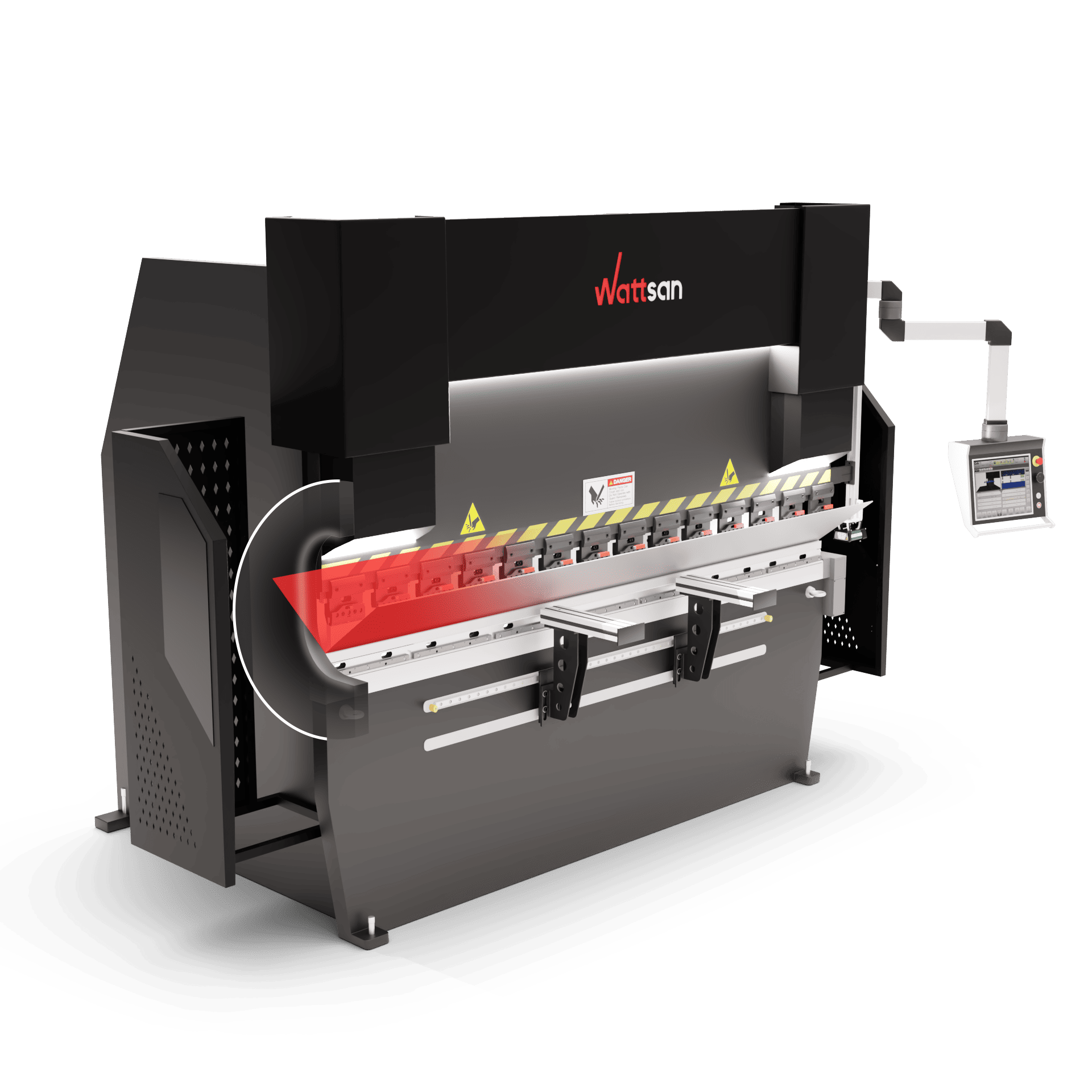

    Advantages C-shaped frame

    Bend any structure

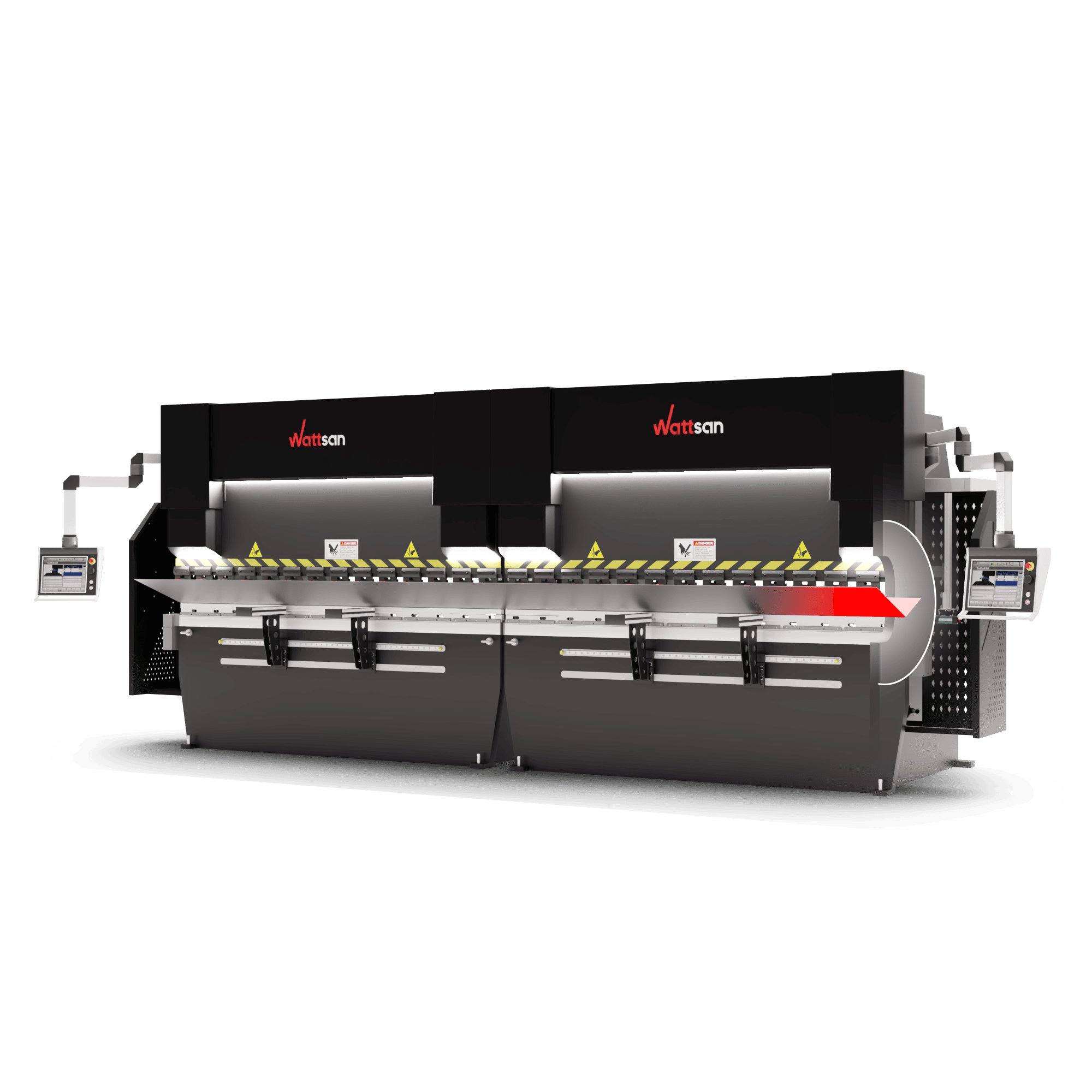

    Tandem option
    This design provides more room for large, heavy tools to be mounted on the side; the ability to extract complex, angular parts from the side; and the ability to bend large, unusually shaped parts out of the workspace.
    Option to use multiple machines in tandem for increase you production and bending very long parts. This design is often referred to as "Tandem."
    wattsan-img wattsan-img
    wattsan-img wattsan-img
    Sheet position stability at each bending stage
    wattsan-img

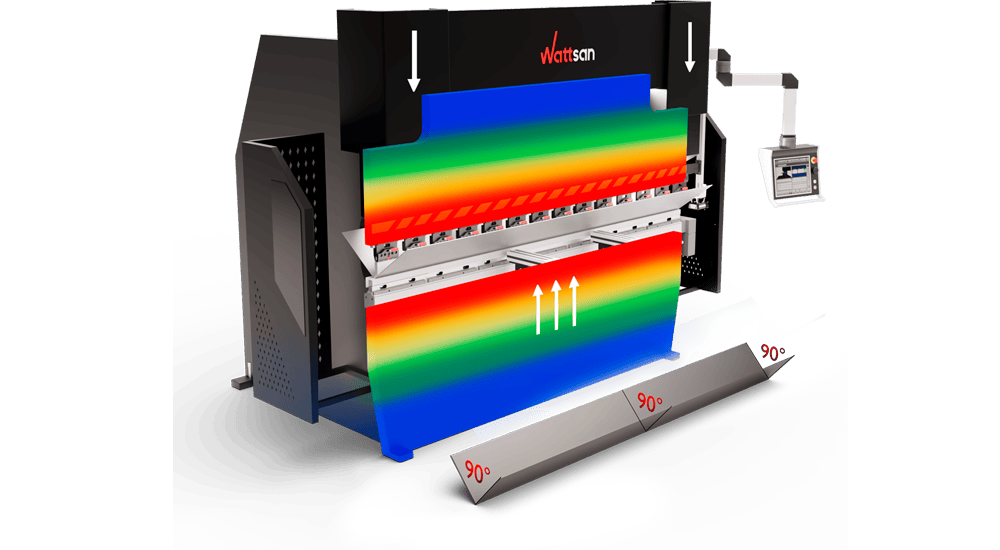

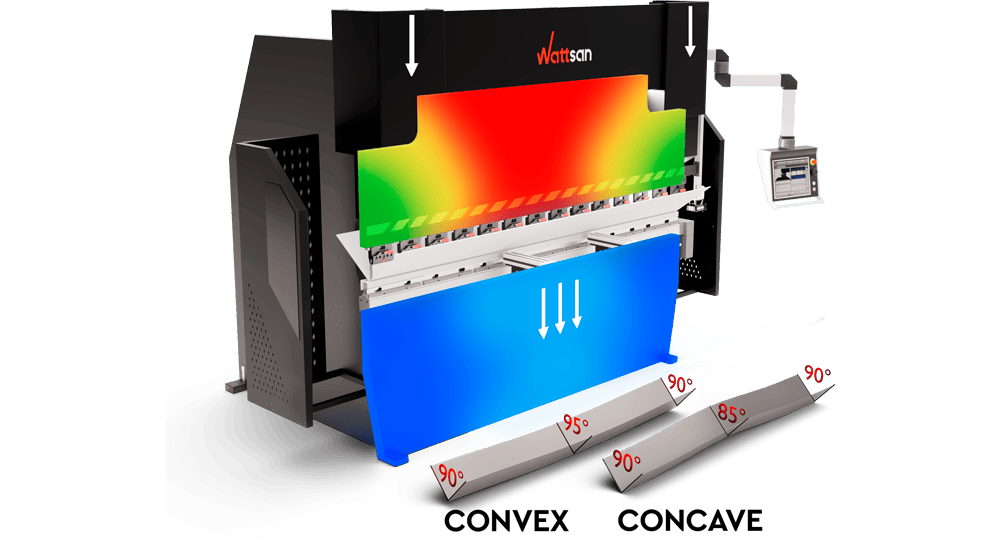

    Wattsan press brakes feature an advanced CNC crowning system that automatically calculates and applies compensation for table and ram deformation during bending. This ensures consistent bending angles across the entire length of the workpiece, even with long or heavy sheets.

    wattsan-img

    For example, the 2500 mm model achieves 4 times less table deformation compared to similar machines, making Wattsan the optimal solution for accurate and reliable metal processing.

    Series comparison

    SERIES/
    Parameters

    Number of working axes

    Capacity

    Throat depth

    Down speed

    Pressing speed

    Main motor power

    X axis stroke

    X axis speed

    R axis stroke

    R axis speed

    Max. bending length

    Control system

    Main engine type

    slide-image

    SB

    Learn more

    4+1/6+1/8+1

    Up to 1000 kN

    Up to 400 mm

    200 mm/min

    30 mm/min

    Up to 41*2 kW

    500 mm

    300 mm/s

    200 mm

    60 mm/s

    Up to 3200 mm

    Delem/ESA

    Servo-electric

    slide-image

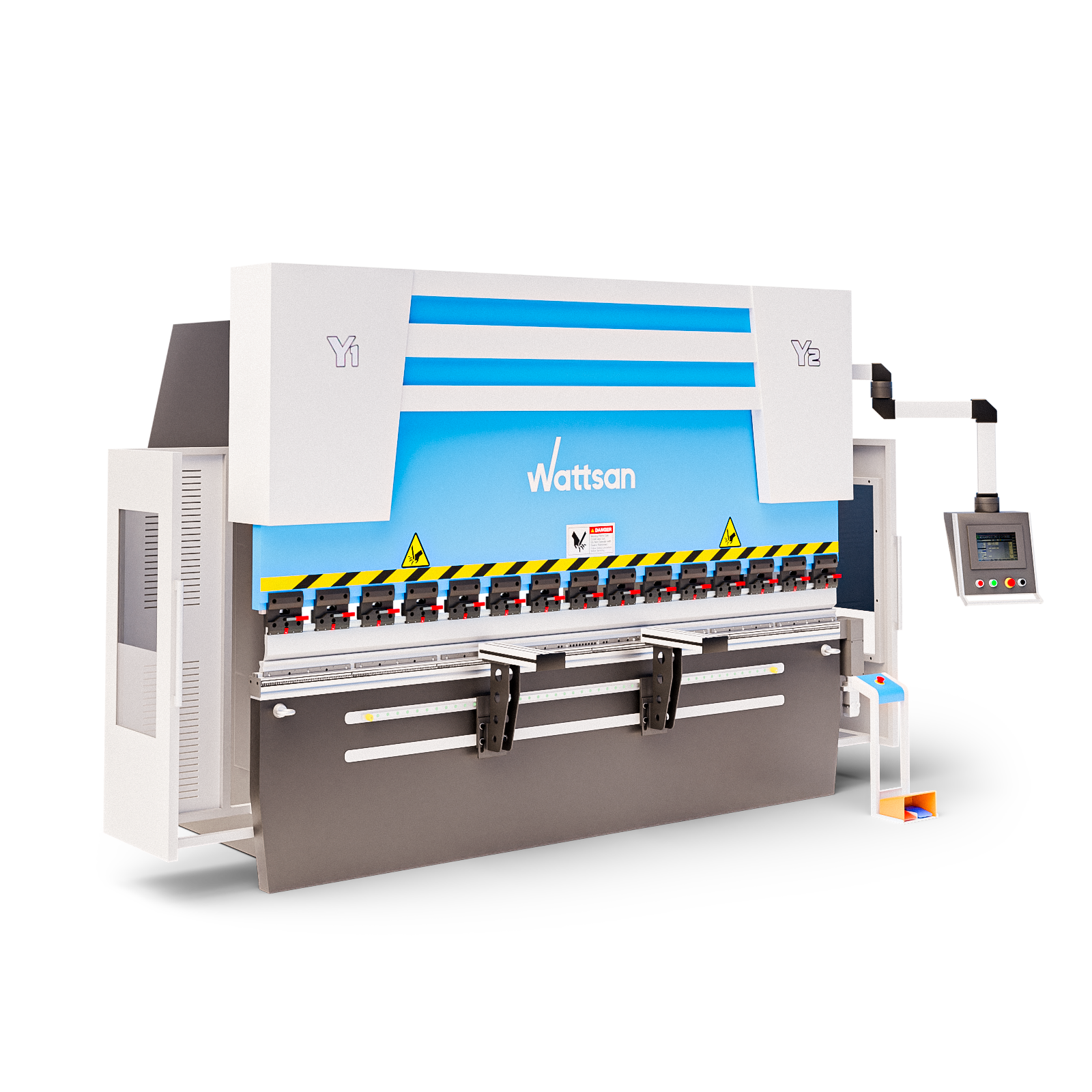

    HB

    Learn more

    4+1/6+1/8+1

    Up to 20000 kN

    Up to 1250 mm

    Up to 180 mm/min

    Up to 12 mm/min

    Up to 55*2 kW

    Up to 1500 mm

    Up to 300 mm/s

    200 mm

    60 mm/s

    Up to 8000 mm

    Delem/ESA

    Hydraulic

    slide-image

    TB

    Learn more

    3+1

    Up to 5000 kN

    Up to 500 mm

    Up to 80 mm/min

    Up to 10 mm/min

    Up to 37 kW

    Up to 600 mm

    Up to 300 mm/s

    -

    -

    Up to 6000 mm

    ESTUN

    Torsion-hydraulic

    We take comprehensive measures to ensure the trouble-free operation of Wattsan machines!

    Service support
    Start-up and training
    All Wattsan engineers undergo compulsory annual training, in order to resolve any issues quickly.
    Wattsan conducts annual training on machine operation and maintenance for all partners worldwide. We run and train more than 100 customers every month.
    wattsan-img wattsan-img
    wattsan-img wattsan-img

    Technical
    characteristics

    Dimensions
    Machine size (LxWxH)
    2500 x 1750 x 2600 mm
    Weight
    5500 kg
    General
    X axis stroke
    500 mm
    Main motor power
    18*2 kW
    Number of working axes
    4+1/6+1/8+1
    Capacity
    600 kN
    Distance between columns
    1600 mm
    Throat depth
    350 mm
    Slide stroke
    200 mm
    Working Table
    Operation types
    Sheet bending
    Max. Bending Length
    2000 mm
    Mechanics
    Control system
    Delem/ESA
    CONTROLLER
    NC CONTROLLERS
    MOTORS
    SIEMENS
    GUIDE RAILS
    HAWKINGS
    Make a request

      Logistics
      We will deliver the equipment under the most convenient conditions for you

      If the machine is not in stock when you purchase it, you must first wait for the assembly process to be completed. It can take at least three weeks (and up to six months). The delivery time itself ranges from 0 days to a month.

      We may deliver on various terms. The most popular ones are EXW, FOB, CIF, and DDP. You can have a machine delivered to your workplace, the destination port, or you can organise the delivery yourself by contacting logistics providers.

      EXW is the most basic shipment type, FOB and CIF may be considered the golden mean, and DDP is the most convenient.

      Technical
      characteristics

      Dimensions
      Machine size (LxWxH)
      2500 x 1750 x 2600 mm
      Weight
      5500 kg
      General
      X axis stroke
      500 mm
      Main motor power
      18*2 kW
      Number of working axes
      4+1/6+1/8+1
      Capacity
      600 kN
      Distance between columns
      1600 mm
      Throat depth
      350 mm
      Slide stroke
      200 mm
      Working Table
      Operation types
      Sheet bending
      Max. Bending Length
      2000 mm
      Mechanics
      Control system
      Delem/ESA
      CONTROLLER
      NC CONTROLLERS
      MOTORS
      SIEMENS
      GUIDE RAILS
      HAWKINGS
