Fiber Laser Metal Cutting Machine 1325
S

  • Work area
  • Laser power
  • Travel speed
  • Laser emitter
  • Working area
  • Machine size
  • 1300 x 2500 mm
  • up to 6 kW
  • 100/120 m/min
  • Raycus / MAX Photonics / IPG
  • 1300х2500 mm
  • 4650x2190x1800 mm
In stock

A combination of technology and the best solutions in one!

Highest cutting quality by combining the best components and engineering solutions.

The main purpose of a laser metal cutter is to cut metal at high speed with the best possible result without the need for further processing. The highest precision, reliability and model quality make Wattsan laser metal cutters in demand all over the world.

Frame

The frame of all Wattsan metal cutting machines undergoes a mandatory annealing and vibration treatment to relieve stresses. Frame design and wall thicknesses depend on the type of metal cutting machine. Frame machining (milling, grinding, rail fixing and helical rails) is performed by robotic systems.

Servomotors and planetary gearboxes

Mitsubishi servomotors and Shimpo planetary gears. They ensure high speed operation without heat for a long time. In addition to high reliability, they are the most common and easily maintained machine components worldwide.

Laser emitters

IPG, Raycus, Max Photonics are the world’s leading manufacturers of laser transmitters that provide the best results, which is why we use them.

Reinforced gantry

Depending on the machine modification, we offer gantries in different materials.

Control system

For your convenience, we offer several options for machine control stands. Each type of control terminal is equipped with an LCD display and a control panel.

Advantages of Wattsan Metal Cutters

Wattsan machines use laser heads from the most popular manufacturers Raytools, WSX, Precitec.

QBH connector

The most common connection standard for most sources worldwide.
Other connectors are possible.

Safety glasses

Protective glass protects expensive collimator optics from dust, dirt and sparks. The lower safety glass is the main consumable; the upper glass is rarely replaced.

Collimator lens

Ensures the beam is parallel before it enters the focusing lens. Should not be changed more than once a year or when servicing the laser head.

Focusing module with position controller

Dynamic focal length variation during operation, to ensure optimum plunge cuts and quality cuts.

Cooling

Water-cooled laser head for critical components: collimator, focus.

Inductive sensor

Ensures that the nozzle height is always precisely maintained above the material6, which in turn ensures a stable cut, regardless of the curvature of the material.




    Servomotors and portal work at high speed

    Portal
    Servomotors
    Wattsan machines use a specially designed extruded aluminium gantry. It has high strength characteristics and low weight.

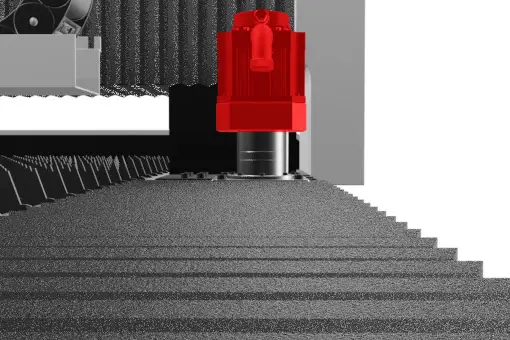

    Mitsubishi servomotors are reliable, quiet and affordable. They offer high power and low vibration in a compact size.

    Several types of frames are available

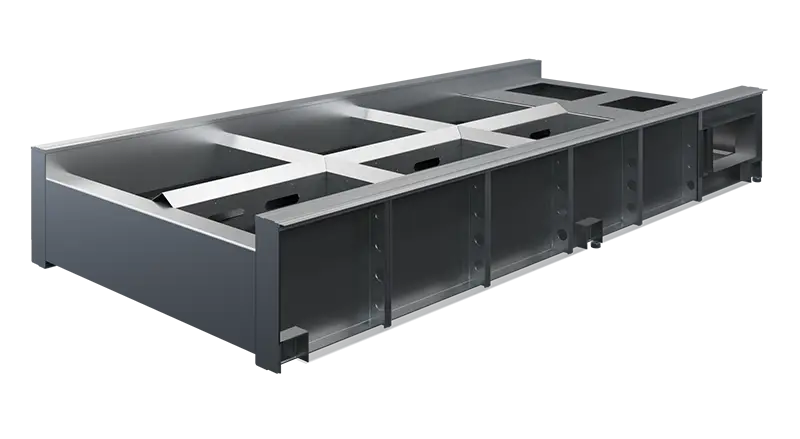

    Frame standard
    Frame hard
    Manufactured for metal cutters with travel speeds of up to 80 metres per minute. The wall thickness of the frame is 8 to 10 mm. There is a reinforcing rib every 400 mm. The frame is heat-treated to ensure a long service life. Machine frame warranty is for 8 years. Used in basic models with work field sizes 1010, 1313, 1325 and 1530. Ventilation beam system with holes of different diameters for uniform fume extraction during cutting.
    Manufactured for metal cutters with a travel speed of 100 to 160 metres per minute. The wall thickness is 12 to 16 mm. Every 400 mm sheet is reinforced inside the frame. The frame is heat treated to stabilize the metal. Frame has a 10 year warranty. Used in machines with working field sizes from 1313 to 2060, used in configurations with an auto-shift or with a pipe cutting module. It has a number of features such as pneumatic flaps for efficient smoke removal during cutting, protection from powerful radiation, preparation for upgrading and others. The frame construction is extremely robust and durable.

    Modes

    Knowing the cutting conditions is our job. With the right cutting modes, you can cut faster, without additional processing, or simply save on materials.

    A special strategy for machining an array of coaxial holes. Reduced machining time, reduced gas consumption. Particularly relevant for the production of ventilated products and perforated enclosures.
    Cutting sharp corners without burnout by means of loops on the edges of the product. Allows you to produce products with sharp corners even when cutting thicker materials.
    Sheet location function. Speeds up the search and start of work by automatically locating the edge of the sheet.
    Compensates for the width of the cut. Required to obtain parts according to the drawing, the function takes the width of the beam into account and compensates for it.
    Common cutting line. Saves cutting time and material, as it does not go over the same cutting point twice.

    Wattsan metal cutters are designed on feedback from customers and service engineers around the world.

    All about the machine in 15 seconds

    High working speed

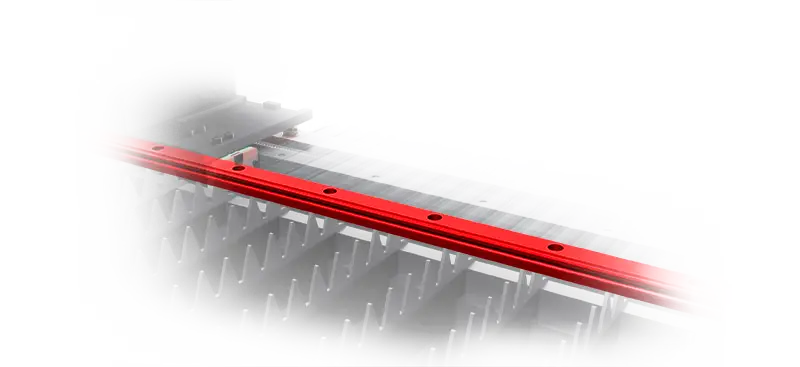

    Hiwin guide rails/screws are the most reliable and affordable worldwide. High-speed ball screws for fast response of the metal curvature tracking system.

    Planetary gears. Nidec-Shimpo withstands high inertia loads with high fail-safe operation.

    Advantages of Wattsan laser metal cutters

    Laser heads from various manufacturers

    Servomotors

    Machine frame modifications

    Emitters

    Control system

    Smoke extraction system

    Gantry

    Cooling system




      Depending on source power and application, we equip machines with Raytools, Precitec, WSX laser heads.

      We switched to Mitsubishi servomotors because they are widespread and extremely reliable.

      The machine frames are designed to perform their tasks with reserve and to last longer than conventional machines.

      IPG, Raycus, Max Photonics. High power factor, easy maintenance, long service life, high efficiency/cost ratio.

      One of the most polarized systems in the world. Extensive functionality, combined CAD and CAM, high fault tolerance, easy to use.

      Efficient smoke evacuation is achieved by automatic pneumatic flaps. Treatment products are evacuated from the area above the laser head.

      Unique gantry configuration, aluminium alloy, low weight. Allow for high speeds and acceleration.

      We use products from world leader TEYU. A chiller is needed to maintain the required operating temperature of the laser head and source. With an accuracy of +- 0.5 °C.

      We take comprehensive measures to ensure the trouble-free operation of Wattsan machines!

      Service support
      Start-up and training
      All Wattsan engineers undergo compulsory annual training, in order to resolve any issues quickly.
      Wattsan conducts annual training on machine operation and maintenance for all partners worldwide. We run and train more than 100 customers every month.

      The machine can process

      01 Aluminum

      02 Steel

      03 Stainless steel

      04 Brass

      05 Copper

      Technical
      characteristics

      Dimensions
      Working area
      1300х2500 mm
      Machine size
      4650x2190x1800 mm
      Packing size
      4650x2190x1800 mm
      Net Weight
      1640 kg
      Optics
      Laser head
      Raytools/Precitec/WSX
      Laser power
      up to 6 kW
      Mechanics
      Engine power Z
      400 W
      Engine power XY
      1000/1500 W
      Gearboxes
      NIDEC-SHIMPO
      Structure of the axes XY
      Guides HIWIN / Helical rack LEAN / Leitesen
      Structure of the axes Z
      HIWIN Guides / Ball Screws
      Height sensor
      Automatic capacitive
      Lubrication system
      Automatic centralised, semi-automatic
      Max. travel speed
      100/120 m/min
      Max. operating speed
      Depends on the material
      Additional gas
      Oxygen, nitrogen, air, argon
      Auto change table
      No
      Bed
      Software
      FSCut
      Power electrics
      Siemens
      Repositioning accuracy
      ±0.02 mm
      Height control system
      BCS100
      Type of end sensors
      Inductive
      Working temperature
      10-40 °C
      Type of emitter
      Raycus / MAX Photonics / IPG
      Laser power adjustment
      % 10-100
      Software
      FSCUT
      Laser head
      RAYTOOLS
      Laser source
      IPG
      Motors
      MITSUBISHI
      Rails
      HIWIN




        Logistics
        We will deliver the equipment according to the requirements convenient for you:

        It is our obligation to deliver the goods to the location selected by the buyer, and we are responsible for all the transportation costs and risks related to the delivery.

        We are responsible for transportation from the factory to the indicated destination. Hence, all documents related to it are under our responsibility, such as way bill, invoice, packing list.

        If you want to organize the delivery, it is beter to find a local logistics company in advance before goods are ready for shipment.

        Technical
        characteristics

        Dimensions
        Working area
        1300х2500 mm
        Machine size
        4650x2190x1800 mm
        Packing size
        4650x2190x1800 mm
        Net Weight
        1640 kg
        Optics
        Laser head
        Raytools/Precitec/WSX
        Laser power
        up to 6 kW
        Mechanics
        Engine power Z
        400 W
        Engine power XY
        1000/1500 W
        Gearboxes
        NIDEC-SHIMPO
        Structure of the axes XY
        Guides HIWIN / Helical rack LEAN / Leitesen
        Structure of the axes Z
        HIWIN Guides / Ball Screws
        Height sensor
        Automatic capacitive
        Lubrication system
        Automatic centralised, semi-automatic
        Max. travel speed
        100/120 m/min
        Max. operating speed
        Depends on the material
        Additional gas
        Oxygen, nitrogen, air, argon
        Auto change table
        No
        Bed
        Software
        FSCut
        Power electrics
        Siemens
        Repositioning accuracy
        ±0.02 mm
        Height control system
        BCS100
        Type of end sensors
        Inductive
        Working temperature
        10-40 °C
        Type of emitter
        Raycus / MAX Photonics / IPG
        Laser power adjustment
        % 10-100
        Software
        FSCUT
        Laser head
        RAYTOOLS
        Laser source
        IPG
        Motors
        MITSUBISHI
        Rails
        HIWIN
